Module-Power Liftgate C2 (Standard) Connector End View (D3839B)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 1924126-1

Part Description: Not Available

Connector No: D3839B

Option: Standard

Repair Kit Part Number: 68307306AA

Cavity Count: 21

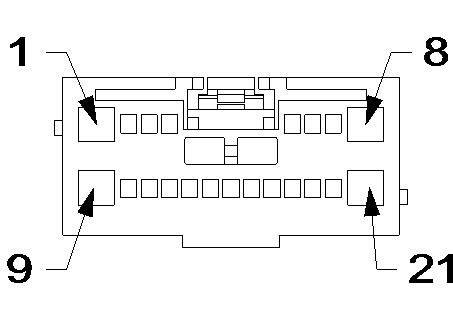

Fig 1: Module-Power Liftgate C2 Connector End View (Standard)

Courtesy of CHRYSLER

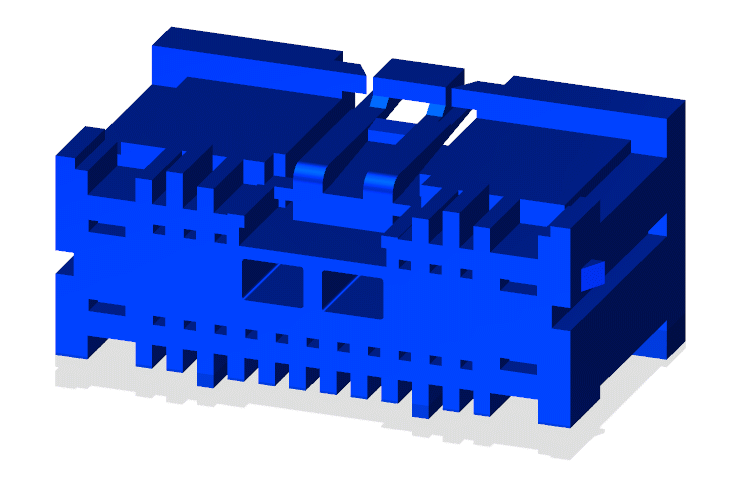

Fig 2: Module-Power Liftgate C2 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Power Liftgate C2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

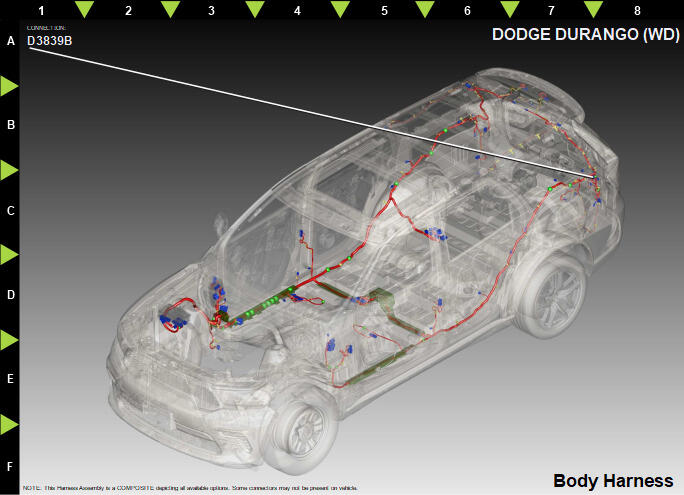

Fig 4: Module-Power Liftgate C2 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	A111	DG/RD	2.0	FUSED B(+)	N/A
2	N0	NA	0	NO CONNECT	N/A
3	N0	NA	0	NO CONNECT	N/A
4	N0	NA	0	NO CONNECT	N/A
5	N0	NA	0	NO CONNECT	N/A
6	D251	WH/OG	0.35	CAN IHS (+)	N/A
7	D250	WH	0.35	CAN IHS (-)	N/A
8	Q84	BG/GY	0.75	LIFTGATE LATCH CINCH DRIVER	N/A
9	Z923	BK	2.0	GROUND	N/A
10	N0	NA	0	NO CONNECT	N/A
11	Q94	BG/GN	0.50	LIFTGATE CHIME DRIVER	N/A
12	G29	VT	0.50	LIFTGATE SWITCH SIGNAL	N/A
13	Q901	OG/VT	0.50	LOGIC GROUND	N/A
14	Q76	OG/YE	0.50	LATCH SECONDARY POSITION SENSE	N/A
15	G78	VT/OG	0.35	DECKLID/LIFTGATE AJAR SWITCH SENSE	N/A
16	Q79	OG/BU	0.50	SECTOR SWITCH SENSE	N/A
17	N0	NA	0	NO CONNECT	N/A
18	Q75	OG/BU	0.50	LEFT PINCH SENSOR SIGNAL	N/A
19	Q78	OG/DB	0.50	RIGHT PINCH SENSOR SIGNAL	N/A
20	G25	VT/BG	0.50	DECKLID/LIFTGATE RELEASE SWITCH SENSE	N/A
21	Q85	BG/WH	0.80	LIFTGATE LATCH RELEASE DRIVER	N/A
