Module-Power-Blower Motor-Rear (Standard) Connector End View (D6608A)

Harness-Family: HVAC_Rear

Color: BLACK

Gender: FEMALE

Part Number: 12041429

Part Description: Not Available

Connector No: D6608A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 5

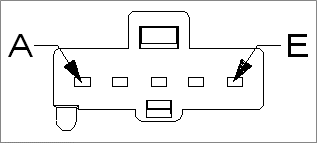

Fig 1: Module-Power-Blower Motor-Rear Connector End View (Standard)

Courtesy of CHRYSLER

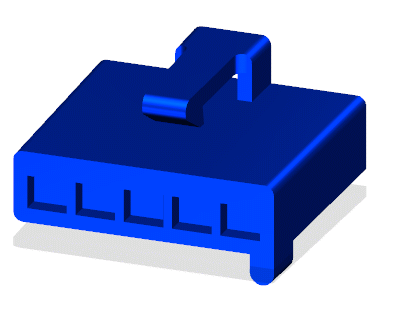

Fig 2: Module-Power-Blower Motor-Rear Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Power-Blower Motor-Rear Wire Insertion View (Standard)

Courtesy of CHRYSLER

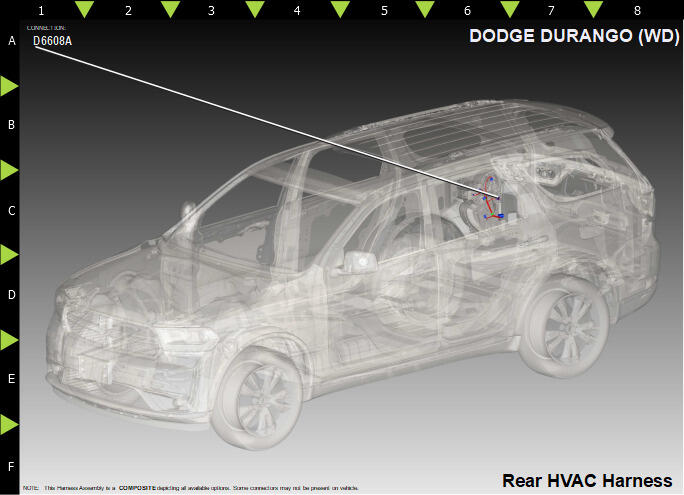

Fig 4: Module-Power-Blower Motor-Rear Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	Z923	BK	3.0	GROUND	N/A
2	C57	DB	0.50	REAR BLOWER MOTOR CONTROL	N/A
3	C51	DB/DG	3.0	FUSED REAR BLOWER MOTOR RELAY OUTPUT	N/A
4	C931	BK/WH	3.0	REAR FAN SENSE RETURN	N/A
5	C31	RD	3.0	REAR FAN SENSE	N/A
