Module-Powertrain Control C2 (Standard) Connector End View (D3821B)

Harness-Family: Engine

Color: TAN

Gender: FEMALE

Part Number: 2035037-1_1924941-1

Part Description: Not Available

Connector No: D3821B

Option: Standard

Repair Kit Part Number: 68404960AA

Cavity Count: 96

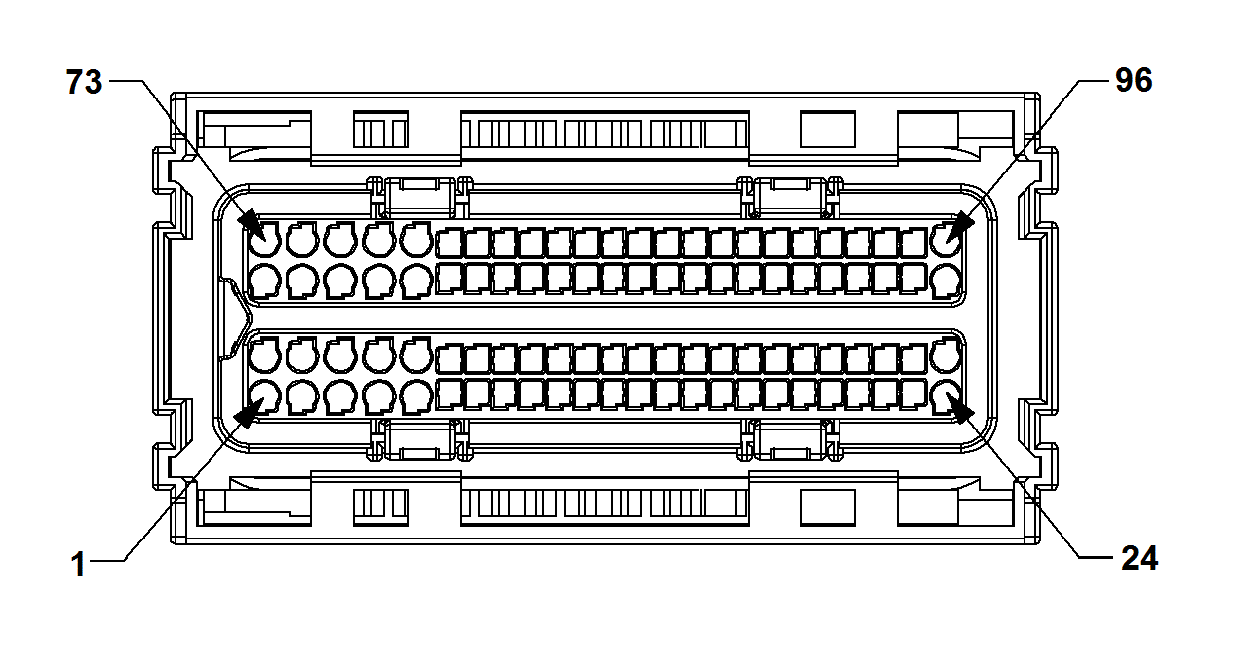

Fig 1: Module-Powertrain Control C2 Connector End View (Standard)

Courtesy of CHRYSLER

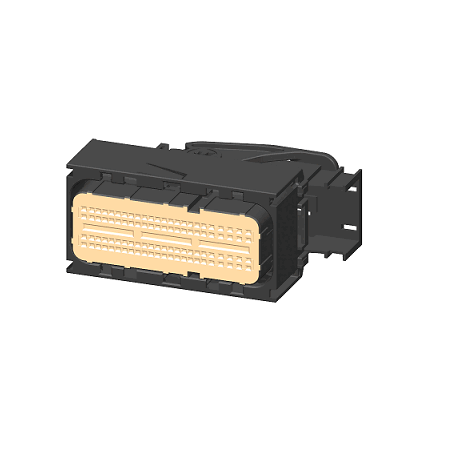

Fig 2: Module-Powertrain Control C2 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Powertrain Control C2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

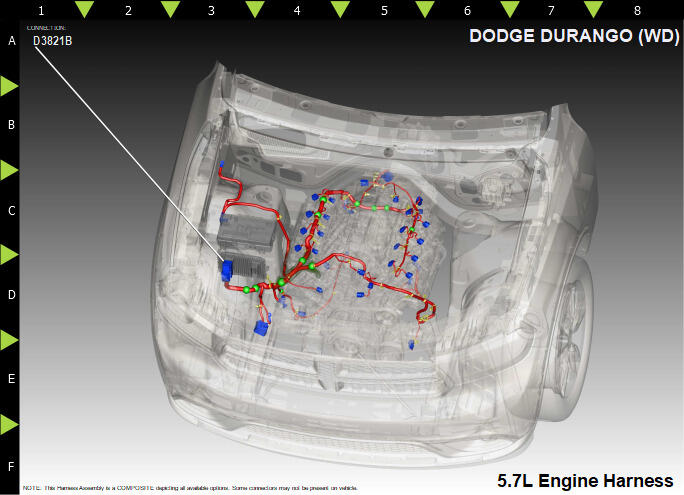

Fig 4: Module-Powertrain Control C2 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K534	GY/YE	0.50	CONTROL	3.6L
1	K454	BN/OG	0.50	MDS SOL CONTROL 7	5.7L 6.4L
2	K171	VT/YE	0.50	SC OUTLET MAP SIGNAL	N/A
3	K7	DB/BG	0.50	SC INLET TEMP SIGNAL	6.2L
3	K932	DB/BU	0.50	EGR TEMP SENSOR SIGNAL	3.6L
4	G60	VT/YE	0.50	OIL PRESSURE SIGNAL	3.6L
4	G6	VT/GY	0.75	OIL PRESSURE SIGNAL	5.7L 6.2L 6.4L
6	K452	BN/BU	0.50	MDS SOL CONTROL 4	5.7L
6	K452	BN/BU	0.50	MDS SOL CONTROL 4	6.4L
6	K532	VT/GY	0.50	CONTROL	3.6L
8	K11	BN/YE	0.75	INJECTOR CONTROL 1	N/A
9	K12	BN/DB	0.75	INJECTOR CONTROL 2	N/A
10	K13	BN/BU	0.75	INJECTOR CONTROL 3	N/A
11	K14	BN/BG	0.75	INJECTOR CONTROL 4	N/A
12	K2	VT/OG	0.50	ECT SIGNAL	N/A
13	K242	BN/WH	0.75	KS 2 SIGNAL	N/A
14	K42	DB/YE	0.75	KS 1 SIGNAL	N/A
15	K89	BN/GN	0.50	O2 1/1 POSITIVE CURRENT CONTROL	N/A
16	K103	BN/BU	0.50	O2 1/1 PUMP CELL CURRENT TRIM	N/A
17	K734	BN/DG	0.50	O2 2/1 PUMP CURRENT	N/A
18	K733	BN	0.50	O2 2/1 PUMP CELL CURRENT TRIM	N/A
19	K141	DB/YE	0.50	O2 1/2 SIGNAL	N/A
20	K904	DB/DG	0.50	O2 RETURN (DOWNSTREAM)	N/A
21	K243	BN	0.50	O2 2/2 SIGNAL	N/A
22	K276	DB/WH	0.50	CONTROL	3.6L
22	K442	DB	0.50	CONTROL	5.7L 6.2L 6.4L
23	K76	BN/WH	0.50	CONTROL	N/A
24	K99	BN/GN	1.0	O2 1/1 HEATER CONTROL	N/A
25	K533	GY	0.50	CONTROL	3.6L
25	K453	BN/DG	0.50	MDS SOL CONTROL 6	5.7L 6.4L
29	T762	DG	0.50	STOP/START PCR RELAY CONTROL	N/A
31	K531	VT	0.50	CONTROL	3.6L
31	K710	DB/GY	0.50	MAKEUP AIR CONTROL	6.2L
31	K451	BN/WH	0.50	MDS SOL CONTROL 1	5.7L 6.4L
32	K20	BN/GY	0.75	GEN FIELD CONTROL	N/A
33	K447	BG/YE	0.75	ETC MOTOR (+)	N/A
34	K448	BG/OG	0.75	ETC MOTOR (-)	N/A
35	A804	RD/VT	0.50	GEN SENSE	N/A
37	K924	WH/BN	0.75	KS 2 RETURN	N/A
38	K942	BN/GN	0.75	KS 1 RETURN	N/A
39	K41	DB/BU	0.50	O2 1/1 SIGNAL	N/A
40	K902	BN/DG	0.50	O2 RETURN (UPSTREAM)	N/A
41	K43	DB/GN	0.50	O2 2/1 SIGNAL	N/A
42	K906	GY/DG	0.50	O2 RETURN (UPSTREAM)	N/A
43	G224	VT/YE	0.50	EOT SIGNAL	3.6L
43	G24	VT/BN	0.50	EOT SIGNAL	5.7L 6.4L
44	K21	DB/GN	0.50	IAT SIGNAL	3.6L
44	K21	DB/GN	0.35	IAT SIGNAL	5.7L 6.4L
45	K1	VT/BN	0.50	MAP SIGNAL	3.6L
45	K1	VT/BN	0.75	MAP SIGNAL	5.7L 6.4L
46	K871	DB/GY	0.50	SCB VALVE SIGNAL 1	N/A
48	K299	BN/WH	1.0	O2 1/2 HEATER CONTROL SUPPLY	N/A
49	K18	DB/OG	1.0	COIL CONTROL 3	N/A
50	K17	DB/BG	1.0	COIL CONTROL 2	N/A
51	K19	DB/DG	1.0	COIL CONTROL 1	N/A
52	N211	GY/BG	0.50	FPCM PWM CONTROL	N/A
53	K238	DB/GN	0.75	SRV ACTUATOR CONTROL SIGNAL	N/A
55	K682	DB/WH	0.50	EGR CONTROL 1	3.6L
55	K873	VT/OG	0.50	SCB VALVE CONTROL (+)	6.2L
56	K874	VT/GY	0.50	SCB VALVE CONTROL (-)	6.2L
56	K684	DB/YE	0.50	EGR CONTROL 2	3.6L
57	K683	DB/GY	0.50	EGR SIGNAL	3.6L
57	K872	DB/OG	0.50	SCB VALVE SIGNAL 2	6.2L
58	K37	BN/OG	0.50	BOOST PRESSURE SIGNAL	N/A
60	K237	DB/YE	0.75	SRV SENSE OUTPUT	N/A
61	K445	DB/DG	0.50	CMP SENSOR SIGNAL 2/2	N/A
62	K441	DB/BN	0.50	CMP SENSOR SIGNAL 1/2	N/A
63	K444	DB/BG	0.50	CMP SENSOR SIGNAL 2/1	N/A
64	N212	GY/GN	0.50	FUEL PUMP 2 RETURN	N/A
65	K922	BN/DB	0.50	TP SENSOR RETURN	N/A
66	K900	DB/DG	0.50	SENSOR GROUND	N/A
67	F855	PK/YE	0.50	5 VOLT SUPPLY	N/A
68	K915	BN/WH	0.50	SENSOR GROUND	N/A
69	K664	DB	0.50	CRANKCASE HOSE PRESSURE SIGNAL	N/A
71	K383	BN/BU	0.50	BANK 2 MAP SIGNAL	N/A
72	K199	BN/VT	1.0	O2 2/1 HEATER CONTROL	N/A
73	K15	DB/GY	1.0	COIL CONTROL 4	N/A
74	K16	DB/YE	1.0	COIL CONTROL 5	N/A
75	K10	DB	1.0	COIL CONTROL 6	3.6L
75	K10	DB/OG	1.0	COIL CONTROL 6	5.7L 6.4L
76	K97	BN	1.0	COIL CONTROL 7	N/A
77	K98	DB/YE	1.0	COIL CONTROL 8	N/A
79	K38	BN/OG	0.75	INJECTOR CONTROL 5	N/A
80	K58	BN/VT	0.75	INJECTOR CONTROL 6	N/A
81	K26	BN/YE	0.75	INJECTOR CONTROL 7	N/A
82	K28	BN/BU	0.75	INJECTOR CONTROL 8	N/A
83	T753	DG/YE	0.50	IGNITION CRANK SENSE	N/A
85	K44	DB/GY	0.50	CMP SENSOR SIGNAL 1/1	N/A
86	K24	BN/BU	0.50	CKP SIGNAL	N/A
87	F856	YE/PK	0.50	5 VOLT SUPPLY	N/A
88	K925	DB/GY	0.50	CKP GROUND	N/A
89	K22	BN/OG	0.50	TP 1 SIGNAL	N/A
90	K122	BN/DG	0.50	TP 2 SIGNAL	N/A
93	G62	VT/YE	0.50	OIL PRESSURE SOL CONTROL	N/A
94	K78	BN	0.50	CONTROL	N/A
95	K277	DB	0.50	CONTROL	N/A
96	K399	BN/GY	1.0	O2 2/2 HEATER CONTROL	N/A
