Module-Steering Column Control C1 (Standard) Connector End View (D3816A)

Harness-Family: IP

Color: YELLOW

Gender: FEMALE

Part Number: 1924393-1_1924396-1

Part Description: Not Available

Connector No: D3816A

Option: Standard

Repair Kit Part Number: 68496354AB

Cavity Count: 14

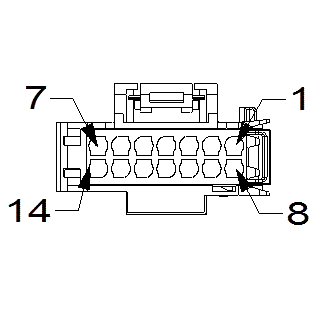

Fig 1: Module-Steering Column Control C1 Connector End View (Standard)

Courtesy of CHRYSLER

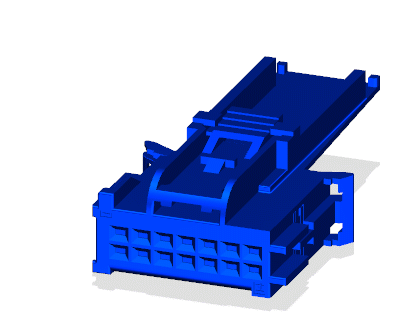

Fig 2: Module-Steering Column Control C1 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Steering Column Control C1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

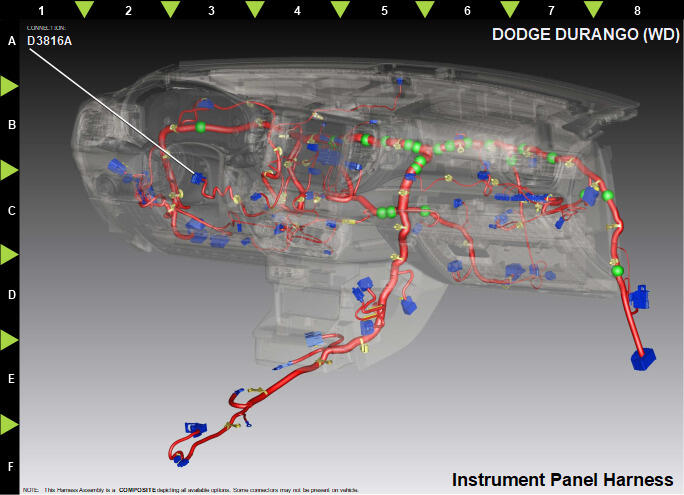

Fig 4: Module-Steering Column Control C1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D403	OG/DB	0.50	LIN BUS CBC 3	N/A
2	Z912	BK/BU	0.50	GROUND	N/A
3	D98	YE	0.35	CAN C (-)	N/A
4	D97	DB/WH	0.35	CAN C (+)	N/A
5	A381	RD/BG	0.50	FUSED B(+)	N/A
6	X3	DG/VT	0.50	HORN SWITCH SENSE	N/A
7	C91	DB/GN	1.0	HEATED STEERING WHEEL FEED	N/A
8	R43	BU/BN	0.50	DRIVER SQUIB 1 LINE 2	N/A
9	R45	GN/OG	0.50	DRIVER SQUIB 1 LINE 1	N/A
10	R61	GN/VT	0.50	DRIVER SQUIB 2 LINE 2	N/A
11	R63	DB/WH	0.50	DRIVER SQUIB 2 LINE 1	N/A
12	N0	NA	0	NO CONNECT	N/A
13	N0	NA	0	NO CONNECT	N/A
14	C986	GY/DB	1.0	HEATED STEERING WHEEL RETURN	N/A
