Module-Steering Column Control C3 (Standard) Connector End View (D3816C)

Harness-Family: Steering_Wheel

Color: BLACK

Gender: FEMALE

Part Number: 0-1456985-3

Part Description: Not Available

Connector No: D3816C

Option: Standard

Repair Kit Part Number: 68087927AB

Cavity Count: 6

Fig 1: Module-Steering Column Control C3 Connector End View (Standard)

Courtesy of CHRYSLER

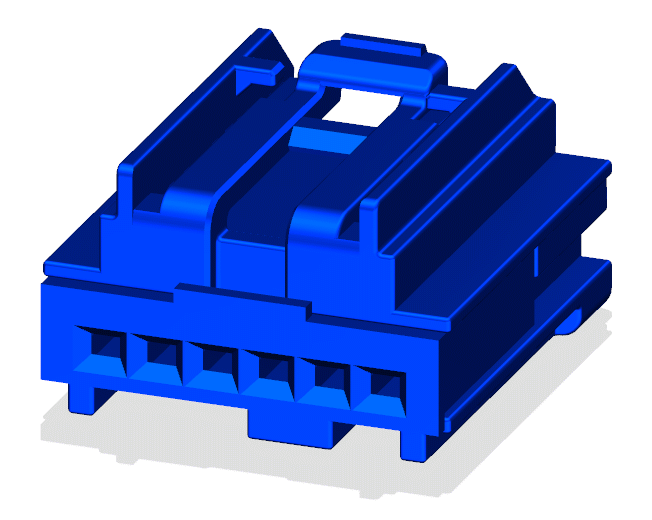

Fig 2: Module-Steering Column Control C3 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Steering Column Control C3 Wire Insertion View (Standard)

Courtesy of CHRYSLER

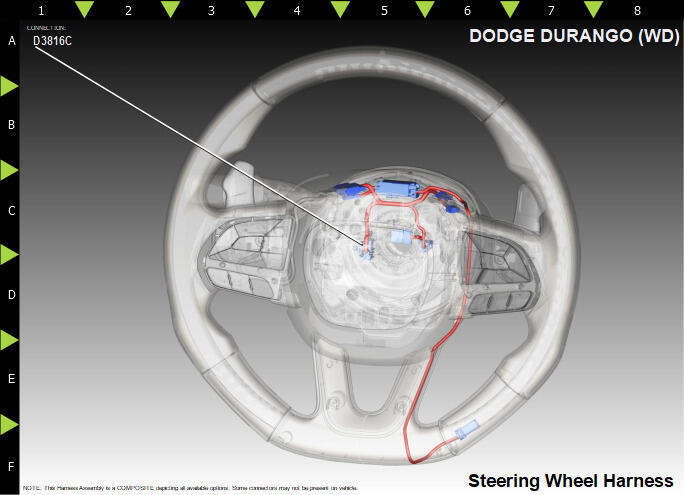

Fig 4: Module-Steering Column Control C3 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	A92	VT	0.35	FUSED B(+)	BASE
1	A92	WH/RD	0.35	FUSED B(+)	SRT
2	T830	DG	0.35	PADDLE SHIFT SWITCH SIGNAL	SRT
2	T830	OG/BN	0.35	PADDLE SHIFT SWITCH SIGNAL	BASE/EXCEPT PURSUIT
3	X3	DB/BK	0.35	HORN SWITCH SENSE	BASE
3	X3	GN	0.35	HORN SWITCH SENSE	SRT
4	D592	BU/RD	0.35	LIN BUS	SRT
4	D592	BG	0.35	LIN BUS	BASE
5	Z92	BK	0.35	GROUND	N/A
6	D594	BU	0.35	LIN BUS	SRT
6	D594	RD/BK	0.35	LIN BUS	BASE
