Module-Steering Column Control C4 (Standard) Connector End View (D3816D)

Harness-Family: Airbag

Color: NA

Gender: FEMALE

Part Number: HARD_WIRED

Part Description: Not Available

Connector No: D3816D

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: N/A

Fig 1: Module-Steering Column Control C4 Connector End View (Standard)
GCWD1006457Courtesy of CHRYSLER

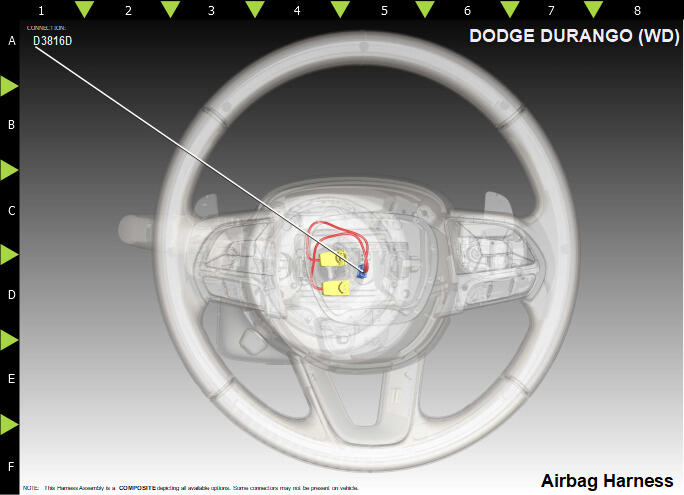

Fig 2: Module-Steering Column Control C4 Component Location View (Standard)
GCWD1326160Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 R43 BN 0.50 DRIVER SQUIB 1 LINE 2 N/A
2 R45 OG 0.50 DRIVER SQUIB 1 LINE 1 N/A
3 R61 VT 0.50 DRIVER SQUIB 2 LINE 2 N/A
4 R63 WH 0.50 DRIVER SQUIB 2 LINE 1 N/A
