Module-Transmission Control (3.6L) Connector End View (D2735A)

Harness-Family: Engine

Color: BLACK

Gender: FEMALE

Part Number: 10094733

Part Description: Not Available

Connector No: D2735A

Option: 3.6L

Repair Kit Part Number: 68305267AA

Cavity Count: 16

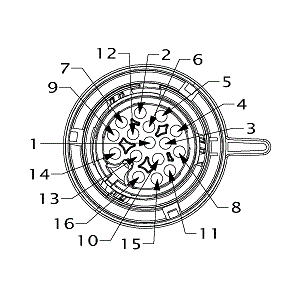

Fig 1: Module-Transmission Control Connector End View (3.6L)

Courtesy of CHRYSLER

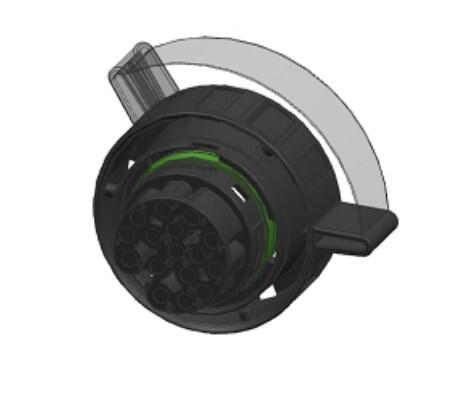

Fig 2: Module-Transmission Control Isometric View (3.6L)

Courtesy of CHRYSLER

Fig 3: Module-Transmission Control Wire Insertion View (3.6L)

Courtesy of CHRYSLER

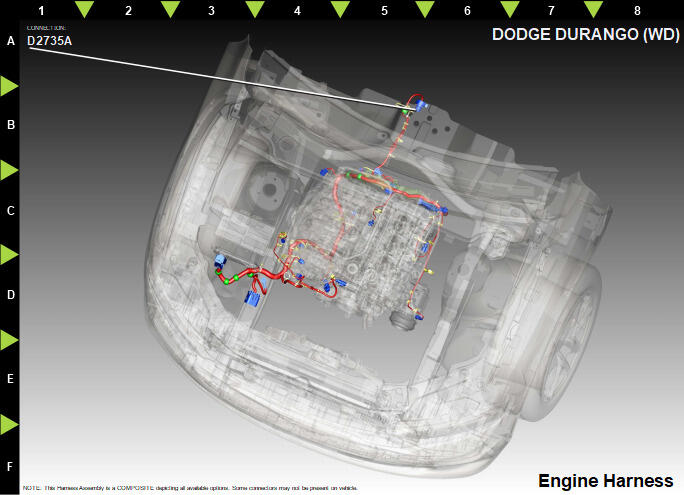

Fig 4: Module-Transmission Control Component Location View (3.6L)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N0	NA	0	NO CONNECT	N/A
2	N0	NA	0	NO CONNECT	N/A
3	D440	WH/BN	0.50	DATA BUS(-) ESHIFT	N/A
4	D441	WH/OG	0.50	DATA BUS(+) ESHIFT	N/A
5	D29	VT/WH	0.50	CAN C (+)	N/A
6	D30	YE	0.50	CAN C (-)	N/A
7	N0	NA	0	NO CONNECT	N/A
8	N0	NA	0	NO CONNECT	N/A
9	F1	PK/WH	0.50	IGNITION OFF/RUN/START CONTROL OUTPUT	N/A
10	N0	NA	0	NO CONNECT	N/A
11	N0	NA	0	NO CONNECT	N/A
12	N0	NA	0	NO CONNECT	N/A
13	A190	YE/RD	2.0	FUSED B(+)	N/A
14	Z903	BK	2.0	GROUND	N/A
15	N0	NA	0	NO CONNECT	N/A
16	N0	NA	0	NO CONNECT	N/A
