Module-Vehicle System Interface C4 (Standard) Connector End View (D2385D)

Harness-Family: Body

Color: GREEN

Gender: FEMALE

Part Number: 7283-9079-60

Part Description: YESC KAIZEN UNSEALED Female SUB ASSY

Connector No: D2385D

Option: Standard

Repair Kit Part Number: 68500077AA

Cavity Count: 16

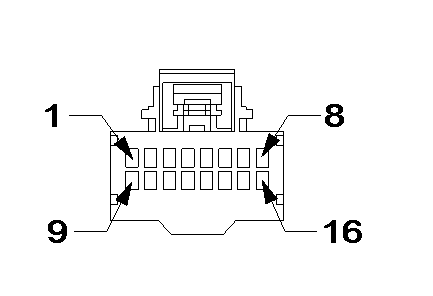

Fig 1: Module-Vehicle System Interface C4 Connector End View (Standard)

Courtesy of CHRYSLER

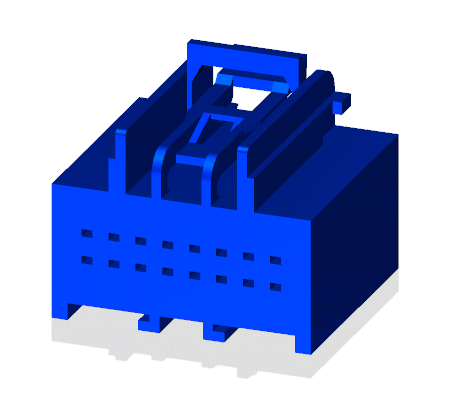

Fig 2: Module-Vehicle System Interface C4 Isometric View (Standard)

Courtesy of CHRYSLER

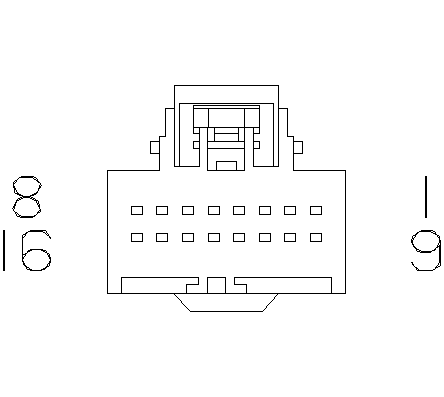

Fig 3: Module-Vehicle System Interface C4 Wire Insertion View (Standard)

Courtesy of CHRYSLER

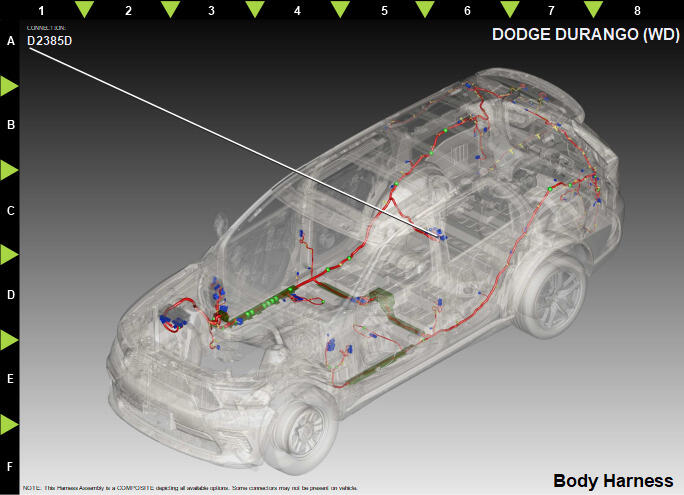

Fig 4: Module-Vehicle System Interface C4 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	W536	GY/DB	0.50	HORN MUTE SIGNAL	N/A
2	W537	DB/YE	0.50	SECURITY ALARM MUTE SIGNAL	N/A
3	N0	NA	0	NO CONNECT	N/A
4	N0	NA	0	NO CONNECT	N/A
5	N0	NA	0	NO CONNECT	N/A
6	N0	NA	0	NO CONNECT	N/A
7	W521	OG/GY	0.50	CLUSTER DIMMER SWITCH SENSE	N/A
8	W727	GN/OG	0.50	AEB SUPPRESS	N/A
9	W640	GY/DG	0.50	UPFITTER AUDIO MUTE SIGNAL	N/A
10	W728	GN/GY	0.50	VSIM WAKE UP/KEEP AWAKE	N/A
11	N0	NA	0	NO CONNECT	N/A
12	N0	NA	0	NO CONNECT	N/A
13	N0	NA	0	NO CONNECT	N/A
14	W522	DB/BG	0.50	ENGINE RUNNING STATUS SIGNAL	N/A
15	W516	BN/DB	0.50	HEADLAMP SWITCH SENSE	N/A
16	W729	GN/YE	0.50	VSIM SECURE PARK ENABLE	N/A
