Fan Module-Radiator Cooling (Heavy Duty Cooling) Connector End View (D3022A)

Harness-Family: HDLP_Dash

Color: DARK GRAY

Gender: FEMALE

Part Number: 7287-1404-10

Part Description: Not Available

Connector No: D3022A

Option: HEAVY DUTY COOLING

Repair Kit Part Number: Not Serviceable

Cavity Count: 4

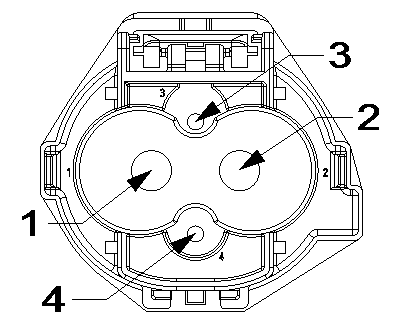

Fig 1: Fan Module-Radiator Cooling Connector End View (HEAVY DUTY COOLING)

Courtesy of CHRYSLER

Fig 2: Fan Module-Radiator Cooling Isometric View (HEAVY DUTY COOLING)

Courtesy of CHRYSLER

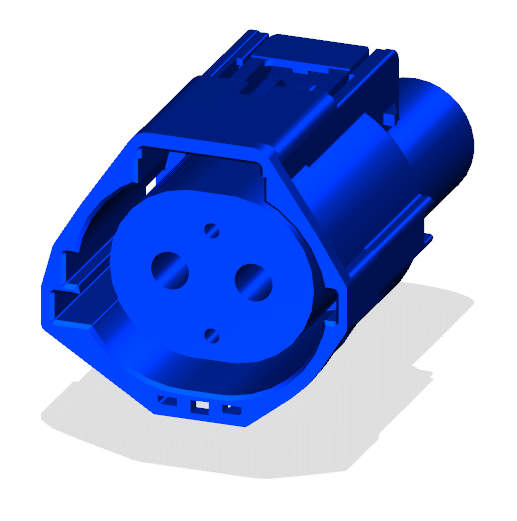

Fig 3: Fan Module-Radiator Cooling Wire Insertion View (HEAVY DUTY COOLING)

Courtesy of CHRYSLER

Fig 4: Fan Module-Radiator Cooling Component Location View (HEAVY DUTY COOLING)

Courtesy of CHRYSLER
