Fan Module-Radiator Cooling (Standard Duty Cooling) Connector End View (D3022A)

Harness-Family: HDLP_Dash

Color: DARK GRAY

Gender: FEMALE

Part Number: 7283-3108-10

Part Description: YESC CONNECTOR SUB-ASSEMBLY W/O CPA

Connector No: D3022A

Option: STANDARD DUTY COOLING

Repair Kit Part Number: 68032865AC

Cavity Count: 4

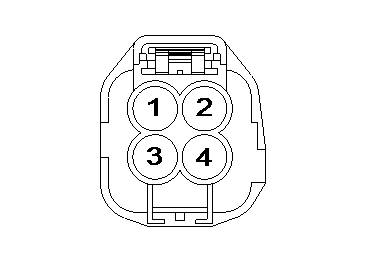

Fig 1: Fan Module-Radiator Cooling Connector End View (STANDARD DUTY COOLING)

Courtesy of CHRYSLER

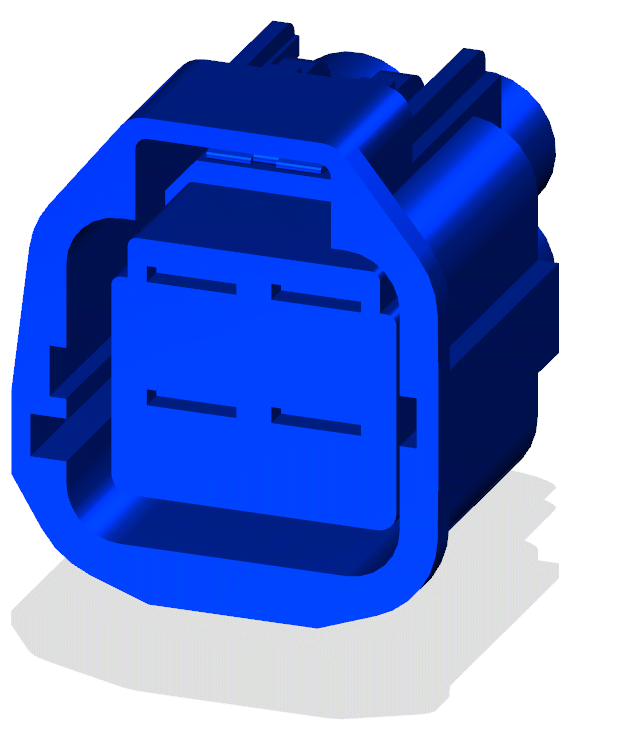

Fig 2: Fan Module-Radiator Cooling Isometric View (STANDARD DUTY COOLING)

Courtesy of CHRYSLER

Fig 3: Fan Module-Radiator Cooling Wire Insertion View (STANDARD DUTY COOLING)

Courtesy of CHRYSLER

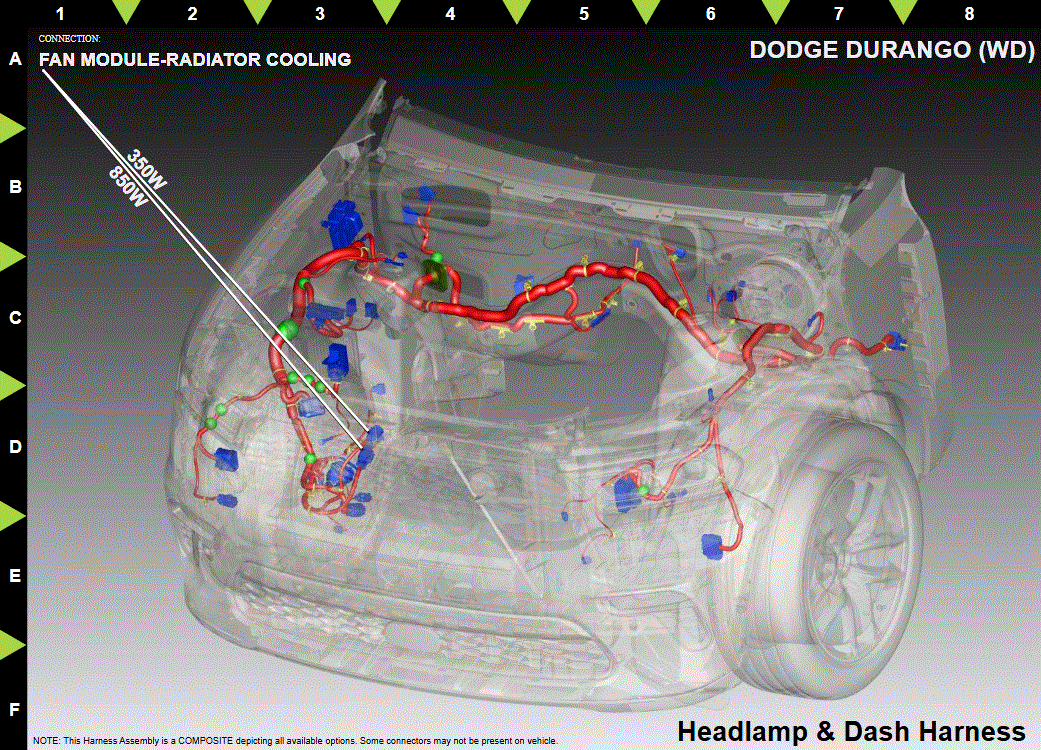

Fig 4: Fan Module-Radiator Cooling Component Location View (STANDARD DUTY COOLING)

Courtesy of CHRYSLER
