Module-Body Control C5/E (Standard) Connector End View (D3806E)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 13850164_13850160_13850161

Part Description: Not Available

Connector No: D3806E

Option: Standard

Repair Kit Part Number: 68440522AB

Cavity Count: 48

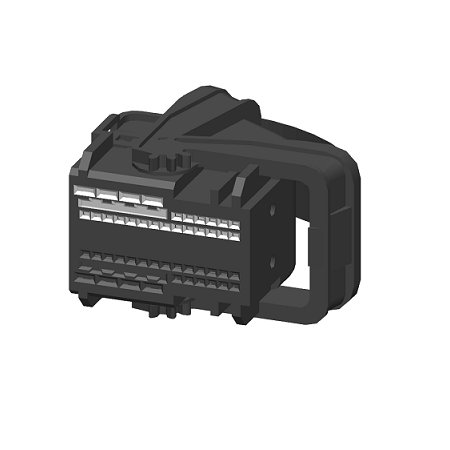

Fig 1: Module-Body Control C5/e Connector End View (Standard)

Courtesy of CHRYSLER

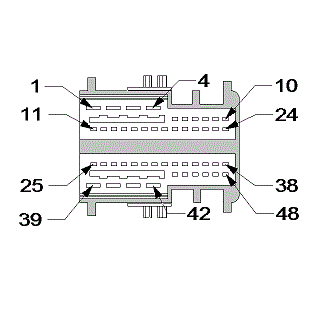

Fig 2: Module-Body Control C5/e Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Body Control C5/e Wire Insertion View (Standard)

Courtesy of CHRYSLER

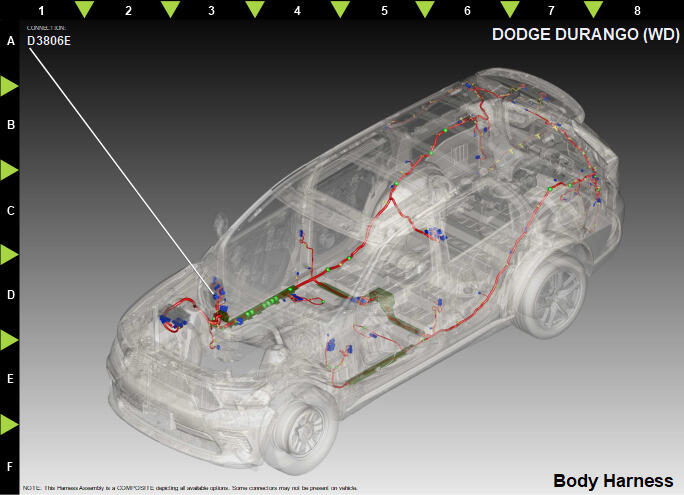

Fig 4: Module-Body Control C5/e Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	L16	WH/VT	0.50	RIGHT BACKUP LAMP DRIVER	N/A
2	L54	WH/GN	0.50	RIGHT STOP/TURN LAMP DRIVER	N/A
3	L63	WH/DG	0.50	LEFT BACKUP LAMP DRIVER	N/A
4	L72	WH/OG	0.50	LICENSE PLATE LAMP DRIVER	N/A
5	G76	VT/YE	0.50	RIGHT REAR DOOR AJAR SWITCH SENSE	N/A
6	P305	GN/BU	0.50	ACCESSORY DELAY RELAY CONTROL	N/A
7	N0	NA	0	NO CONNECT	N/A
8	N0	NA	0	NO CONNECT	N/A
9	P307	GN/GY	0.50	ACCESSORY DELAY RELAY CONTROL	N/A
10	P675	BG/BK	0.50	HDRST REL 3RD ROW RLY SIG	N/A
11	B25	DG/WH	0.50	PARK BRAKE SWITCH SENSE	N/A
12	N0	NA	0	NO CONNECT	N/A
13	N0	NA	0	NO CONNECT	N/A
14	N0	NA	0	NO CONNECT	N/A
15	N5	DB/GY	0.50	FUEL LEVEL SIGNAL 2	N/A
16	G109	BK	0.50	FUEL LEVEL SENSE RETURN	N/A
17	N4	DB/WH	0.50	FUEL LEVEL SENSOR SIGNAL	N/A
18	L3	WH/DB	0.50	RIGHT REAR PARK LAMP DRIVER	N/A
19	N0	NA	0	NO CONNECT	N/A
20	N0	NA	0	NO CONNECT	N/A
21	N0	NA	0	NO CONNECT	N/A
22	L656	WH/DG	0.50	RIGHT REAR TURN SIGNAL CONTROL	N/A
23	L658	WH/BN	0.50	TRAILER TOW BACKUP LAMP RELAY CONTROL	N/A
24	L657	WH/GN	0.50	TRAILER TOW TAIL LAMP RELAY CTRL	N/A
25	D45	BN	0.35	CAN C (+)	N/A
26	D46	YE	0.35	CAN C (-)	N/A
27	F20	PK/WH	0.50	IGNITION RUN/START CONTROL OUTPUT	N/A
28	G755	VT/BG	0.50	DRIVER DOOR SECONDARY AJAR SWITCH SENSE	N/A
29	N0	NA	0	NO CONNECT	N/A
30	N0	NA	0	NO CONNECT	N/A
31	N0	NA	0	NO CONNECT	N/A
32	N0	NA	0	NO CONNECT	N/A
33	N0	NA	0	NO CONNECT	N/A
34	N0	NA	0	NO CONNECT	N/A
35	N0	NA	0	NO CONNECT	N/A
36	K619	BN/OG	0.50	RUN RELAY CONTROL	N/A
37	N0	NA	0	NO CONNECT	N/A
38	N0	NA	0	NO CONNECT	N/A
39	N0	NA	0	NO CONNECT	N/A
40	N0	NA	0	NO CONNECT	N/A
41	N0	NA	0	NO CONNECT	N/A
42	N0	NA	0	NO CONNECT	N/A
43	N0	NA	0	NO CONNECT	N/A
44	N0	NA	0	NO CONNECT	N/A
45	D403	OG/DB	0.50	LIN BUS CBC 3	N/A
46	N0	NA	0	NO CONNECT	N/A
47	W17	BN	0.50	REAR WIPER PARK SWITCH SENSE	N/A
48	W12	BN/OG	0.50	REAR WIPER RELAY CONTROL	N/A
