Module-Vehicle System Interface C1 (Standard) Connector End View (D2385A)

Harness-Family: Body

Color: LIGHT GRAY

Gender: FEMALE

Part Number: 7283-6467-40

Part Description: 2.8 KAIZEN YESC CONNECTOR SUB ASSEMBLY

Connector No: D2385A

Option: Standard

Repair Kit Part Number: 68498861AA

Cavity Count: 12

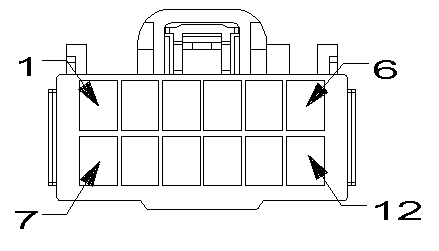

Fig 1: Module-Vehicle System Interface C1 Connector End View (Standard)

Courtesy of CHRYSLER

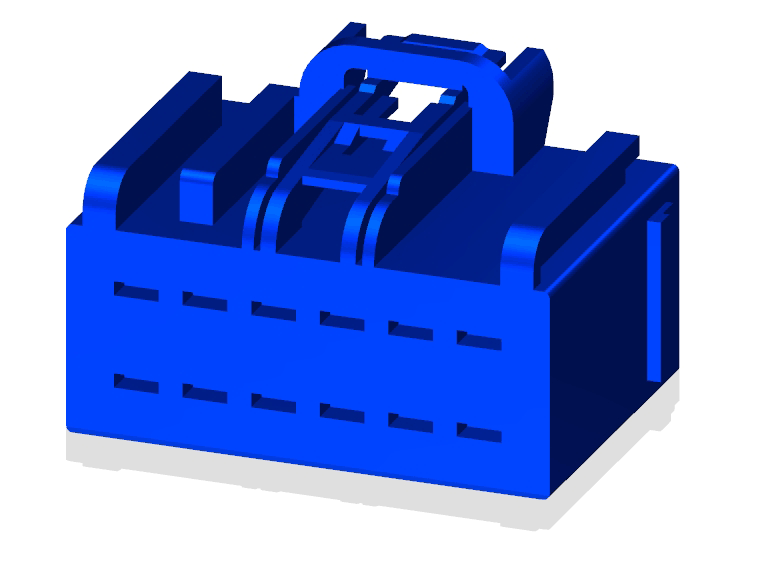

Fig 2: Module-Vehicle System Interface C1 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Vehicle System Interface C1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

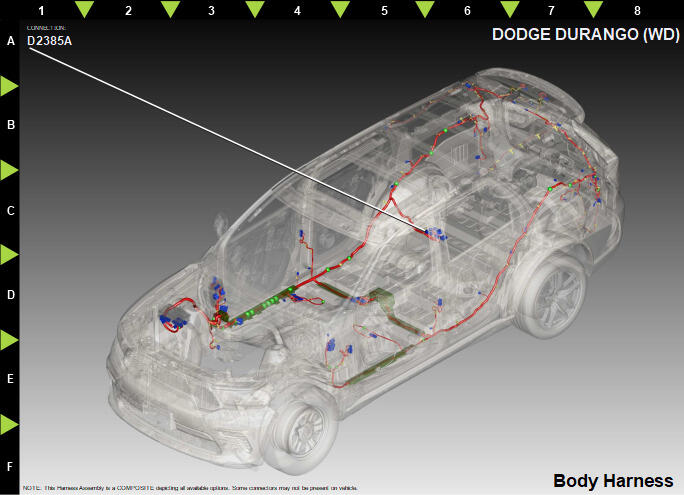

Fig 4: Module-Vehicle System Interface C1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	A991	RD	2.0	FUSED B(+)	N/A
2	N0	NA	0	NO CONNECT	N/A
3	N0	NA	0	NO CONNECT	N/A
4	W564	DB	0.50	LARGE SCREEN SWITCH	N/A
5	W552	GN/VT	0.50	UPFITTER CLUSTER DIMMING SIGNAL	N/A
6	W562	GN/VT	0.50	UPFITTER STEERING WHEEL SWITCH SIGNAL 2	N/A
7	Z916	BK	1.0	GROUND	N/A
8	N0	NA	0	NO CONNECT	N/A
9	N0	NA	0	NO CONNECT	N/A
10	W526	BN/DB	0.50	VEHICLE SPEED SIGNAL	N/A
11	W523	BN/GY	0.50	DRIVER DOOR AJAR SWITCH SENSE	N/A
12	W540	DG	0.50	MALFUNCTION INDICATOR SIGNAL	N/A
