Module-Vehicle System Interface C2 (Standard) Connector End View (D2385B)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 7283-9076-30

Part Description: Not Available

Connector No: D2385B

Option: Standard

Repair Kit Part Number: 68064991AA

Cavity Count: 16

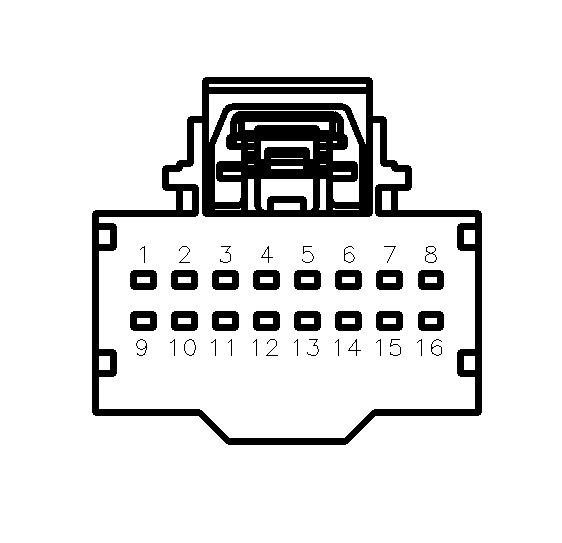

Fig 1: Module-Vehicle System Interface C2 Connector End View (Standard)

Courtesy of CHRYSLER

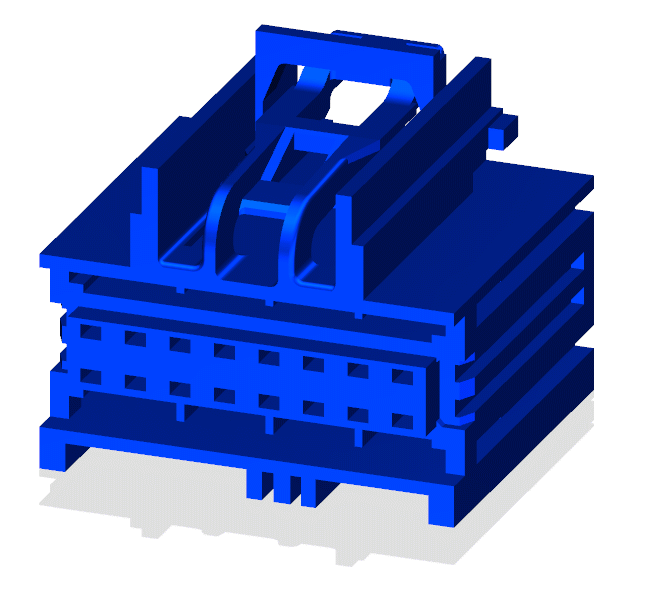

Fig 2: Module-Vehicle System Interface C2 Isometric View (Standard)

Courtesy of CHRYSLER

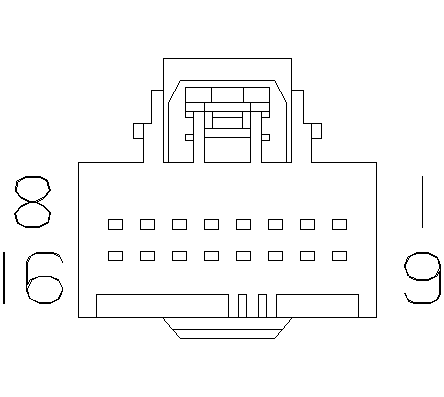

Fig 3: Module-Vehicle System Interface C2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

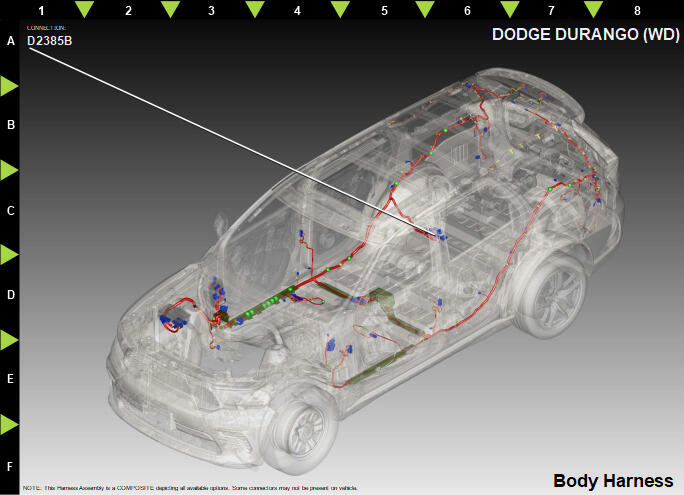

Fig 4: Module-Vehicle System Interface C2 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	W524	BN/YE	0.50	VEHICLE SPEED SIGNAL	N/A
2	W513	BN/GY	0.50	HORN SWITCH SENSE	N/A
3	W563	GN/DB	0.50	UPFITTER STEERING WHEEL SWITCH SIGNAL 3	N/A
4	W553	GN	0.50	UPFITTER STEALTH MODE ACTIVE	N/A
5	W700	YE/DB	0.50	UPFITTER TRANS PARK SIGNAL	N/A
6	W710	GN/VT	0.50	UPFITTER SEAT BELT SWITCH SENSE	N/A
7	N0	NA	0	NO CONNECT	N/A
8	N0	NA	0	NO CONNECT	N/A
9	W561	GN/BN	0.50	UPFITTER STEERING WHEEL SWITCH SIGNAL 1	N/A
10	W515	VT/BU	0.50	SECURITY ALARM ON SIGNAL	N/A
11	W726	DG/OG	0.50	UPFITTER BRAKE PEDAL SIGNAL	N/A
12	W745	VT/BG	0.50	EGR CONTROL 2	N/A
13	K686	DB/WH	0.50	EGR CONTROL 3	N/A
14	N0	NA	0	NO CONNECT	N/A
15	N0	NA	0	NO CONNECT	N/A
16	N0	NA	0	NO CONNECT	N/A
