Module-Vehicle System Interface C5 (Standard) Connector End View (D2385E)

Harness-Family: Body

Color: BLUE

Gender: FEMALE

Part Number: 7283-9080-90

Part Description: KAIZEN 0.64 SYSTEM UNSEALED

Connector No: D2385E

Option: Standard

Repair Kit Part Number: 68498862AA

Cavity Count: 16

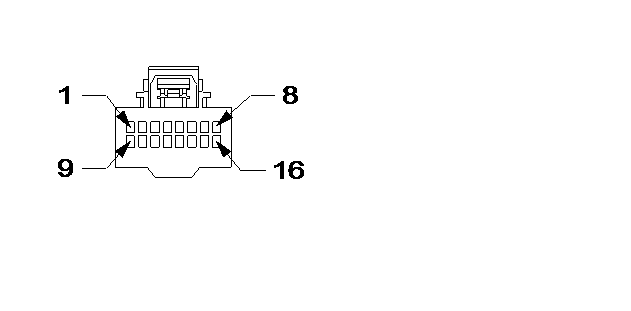

Fig 1: Module-Vehicle System Interface C5 Connector End View (Standard)

Courtesy of CHRYSLER

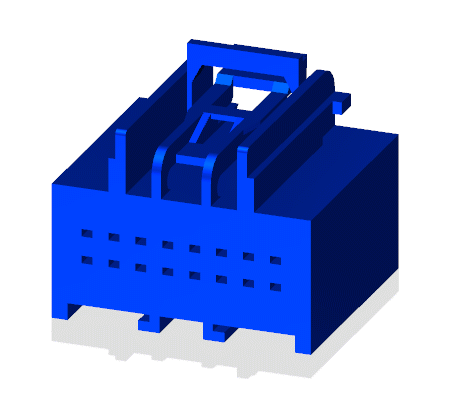

Fig 2: Module-Vehicle System Interface C5 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Vehicle System Interface C5 Wire Insertion View (Standard)

Courtesy of CHRYSLER

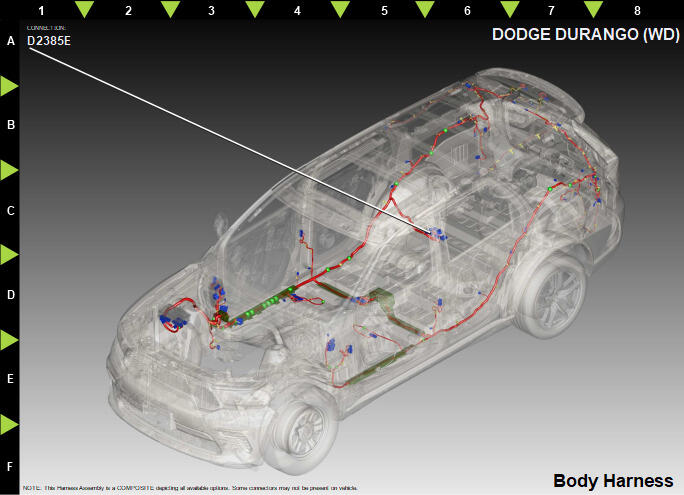

Fig 4: Module-Vehicle System Interface C5 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	W734	PK/GY	0.50	UPFITTER IGNITION RUN ACC 2	N/A
2	W736	PK/YE	0.50	UPFITTER IGNITION RUN	N/A
3	W720	VT/OG	0.50	UPFITTER ANY DOOR AJAR SIGNAL	N/A
4	G745	VT/DB	0.50	AJAR SIGNAL	N/A
5	W500	BN/OG	0.50	FRONT FLASHING LIGHTS SIGNAL	N/A
6	W501	BN/VT	0.50	REAR FLASHING LIGHTS SIGNAL	N/A
7	D397	BN/OG	0.50	CAN C (+)	N/A
8	W532	BN/DB	0.50	CAN B (+)	N/A
9	W702	DG/DB	0.50	UPFITTER TRANS REVERSE SIGNAL	N/A
10	W703	DG/BU	0.50	UPFITTER TRANS DRIVE SIGNAL	N/A
11	N0	NA	0	NO CONNECT	N/A
12	G776	VT/OG	0.50	RETURN	N/A
13	G755	VT/BG	0.50	DRIVER DOOR SECONDARY AJAR SWITCH SENSE	N/A
14	N0	NA	0	NO CONNECT	N/A
15	D396	YE	0.50	CAN C (-)	N/A
16	W534	BN/BU	0.50	CAN B (-)	N/A
