Button, Start/Stop: Installation

NOTE:

The START/STOP button should only be removed or installed with the ignition off.

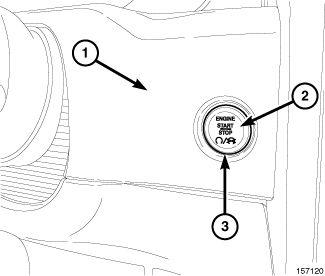

GC0132880Courtesy of CHRYSLER GROUP, LLC
  1. Position the START/STOP button (2) with the lettering in the horizontal position.
  2. Insert the button into the receptacle on the instrument panel (1) and gently press on the chrome bezel ring (3) to seat the button in the receptacle.
