Switch, Speed Control: Removal
WARNING: This page is about a different car, the 2021 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.
- Remove the air bag from the steering wheel. Refer to AIR BAG, DRIVER, REMOVAL .
- Remove the remote radio switch on the speed control switch bezel side of the steering wheel. Refer to SWITCH, REMOTE RADIO, REMOVAL
.

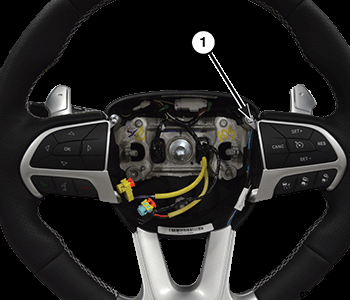

- Remove the fastener (1) from the front of the speed control switch bezel.
- From the backside of the steering wheel, remove the fastener securing the speed control switch bezel to the steering wheel.
- Disconnect the wire harness connector from the switch.
- Remove the switch from the bezel.
