Module, Shaft Lock: Removal

WARNING: This page is about a different car, the 2021 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbags, airbag curtains, knee blocker, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect the Intelligent Battery Sensor (IBS) / negative battery cable assembly from the negative battery post, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

GC0158224Courtesy of CHRYSLER GROUP, LLC
NOTE:

Before starting this procedure refer to the Module/Programming Order Replacement Guide chart for the correct order in which to replace and program the modules. Refer to STANDARD PROCEDURE .

NOTE:

If a new shaft lock module (also known as the Electronic Steering Column Lock/ESCL or the Elektronische Lenkungs Verriegelung/ELV) has been installed, a new Radio Frequency Hub Module (RFHM) must also be installed.

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the steering column from the vehicle. Refer to COLUMN, REMOVAL .

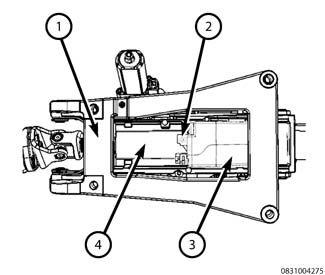

  3. Reach through the opening in the top of the column mount (1) to access and remove the fastener (2) that secures the shaft lock module (3) to the steering column housing (4).
  4. Lift the connector end of the shaft lock module away from the column housing far enough to disengage the lock bolt from the slotted opening in the column housing and shaft.
  5. Pull the shaft lock module towards the lower end of the column housing far enough to disengage the engagement tab of the module from the steering column housing.
  6. Remove the shaft lock module from the steering column.
