Sending Unit And Sensor, Fuel Level: Description
WARNING: This page is about a different variant/trim than selected.
 Courtesy of CHRYSLER GROUP, LLC
|

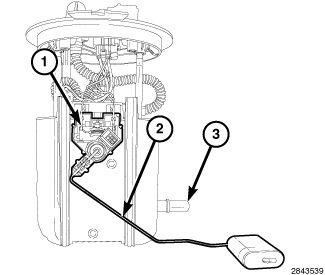

The fuel gauge sending unit (1) is attached to the side of the fuel pump module. The fuel gauge sending unit consists of a float arm (2) and a variable resistor track (card).
