Sending Unit And Sensor, Fuel Level: Installation
WARNING: This page is about a different variant/trim than selected.

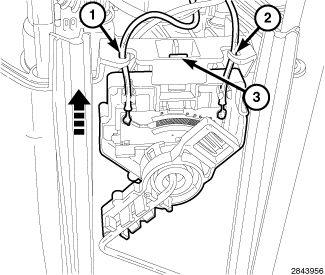

- Position the fuel level sending unit to the fuel pump module, slide unit on mounting track until the plastic locking tab (3) snaps into position.
- Route the fuel level sending unit wires into the retaining tabs (1, 2) on the fuel pump module.

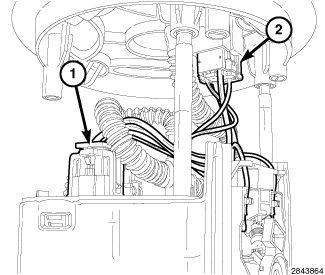

- Connect the fuel level sending unit wire harness connectors (1, 2) to the fuel pump module.
- Install the main fuel pump module. Refer to INSTALLATION .
