Sensor, Air Temperature, Intake: Installation
WARNING: This page is about a different variant/trim than selected.
NOTE:
Use care not to bend or damage the Inlet Air Temperature (IAT) sensor probe while installing.
 Courtesy of CHRYSLER GROUP, LLC
|

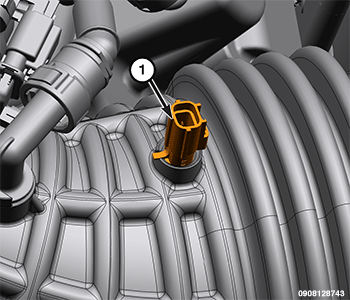

- Install the IAT sensor (1) into the rubber air intake hose, turn the IAT sensor 1/4 turn clockwise and lock into position.
 Courtesy of CHRYSLER GROUP, LLC
|

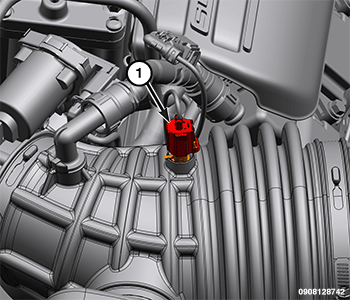

- Connect the IAT sensor wire harness connector (1).
