Sensor, Mode: Removal
WARNING: This page is about a different variant/trim than selected.
- Raise and support the vehicle.
 Courtesy of CHRYSLER GROUP, LLC
|

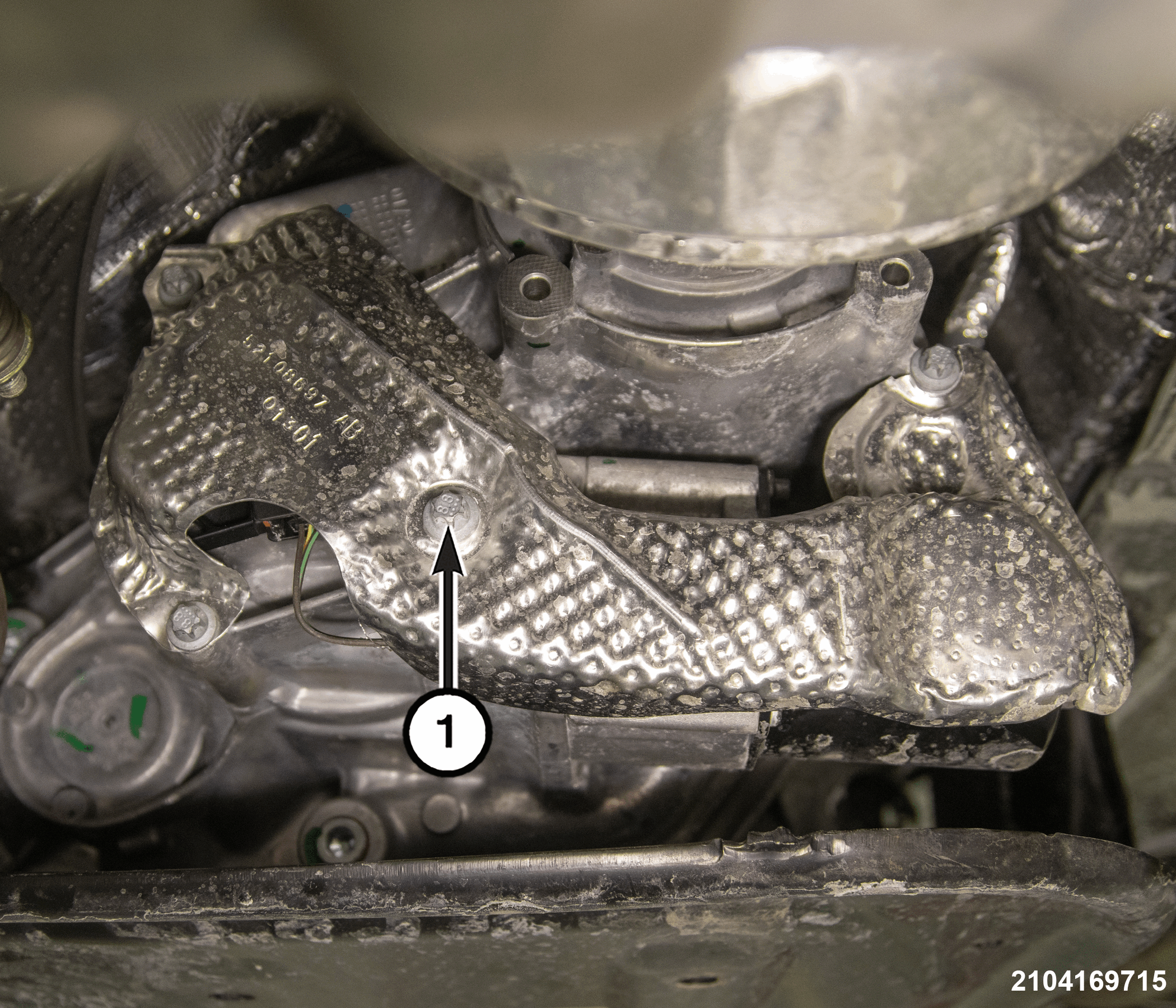

- Remove the fasteners (1) and remove the heat shield.
- Remove the wiring harness electrical connector from the encoder.
- Remove the screws securing the encoder to the rear transfer case housing.
 Courtesy of CHRYSLER GROUP, LLC
|

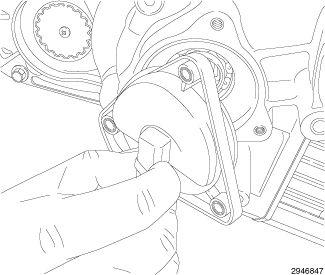

- Remove the encoder from the transfer case.
