Side - D-Pillar
To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbags, airbag curtains, knee blocker, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect the Intelligent Battery Sensor (IBS)/negative battery cable assembly from the negative battery post, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.
To avoid serious or fatal injury, never strike or drop the side impact sensor, as it can damage the impact sensor or affect its calibration. The side impact sensor enables the system to deploy the side Supplemental Restraint System (SRS) components. If an impact sensor is accidentally dropped during service, the sensor must be scrapped and replaced with a new unit. Failure to observe this warning could result in accidental, incomplete, or improper side SRS component deployment.

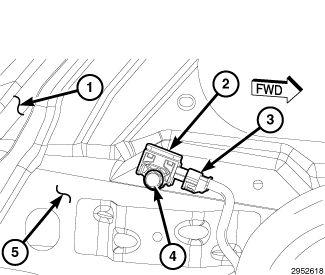

- Position the side impact sensor (2) onto the inner quarter panel (5) near the D-pillar (1). Be certain that the anti-rotation pin on the back of the sensor is engaged in the clearance hole of the inner quarter panel.
- Install and tighten the screw (4) that secures the sensor to the inner quarter panel. Tighten the screw to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
- Connect the body wire harness connector (3) to the sensor connector receptacle.
- Install the quarter trim panel onto the inner quarter panel near the D-pillar. Refer to PANEL, QUARTER TRIM, INSTALLATION .
- Do not connect the negative battery cable at this time. The Supplemental Restraint System (SRS) Verification Test procedure should be performed following service of any SRS component. Refer to SUPPLEMENTAL RESTRAINT SYSTEM VERIFICATION TEST .
