Module, Radio Receiver: Installation

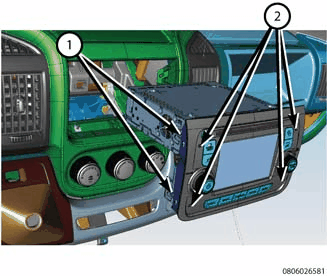

GC0160268Courtesy of CHRYSLER GROUP, LLC
  1. Connect the antenna connectors.
  2. Connect the radio electrical connectors.
  3. Insert the radio into the instrument panel and engage the inner retaining clips (1).
  4. Connect the negative battery cable.
NOTE:

The radio must be programmed after a radio replacement. Refer to STANDARD PROCEDURE .
