Tailpipe, Exhaust: Installation

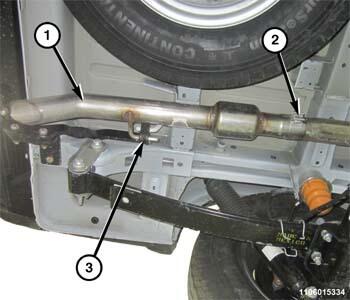

GC0160505Courtesy of CHRYSLER GROUP, LLC
  1. Install the tailpipe (1) to the exhaust outlet pipe. Tighten the band clamp (2) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
  2. Install the tailpipe isolator (3).
