Pedal, Accelerator: Removal

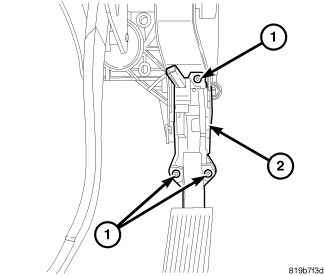

GC0124466Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate negative battery cable at battery.
  2. Disconnect electrical connector from pedal assembly.
  3. Remove accelerator pedal mounting bolts (1).
  4. Remove accelerator pedal assembly (2).
