Module, Park Assist (PAM): Description
WARNING: This page is about a different car, the 2022 RAM ProMaster 3500, 2022 RAM ProMaster 2500, and 2022 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.

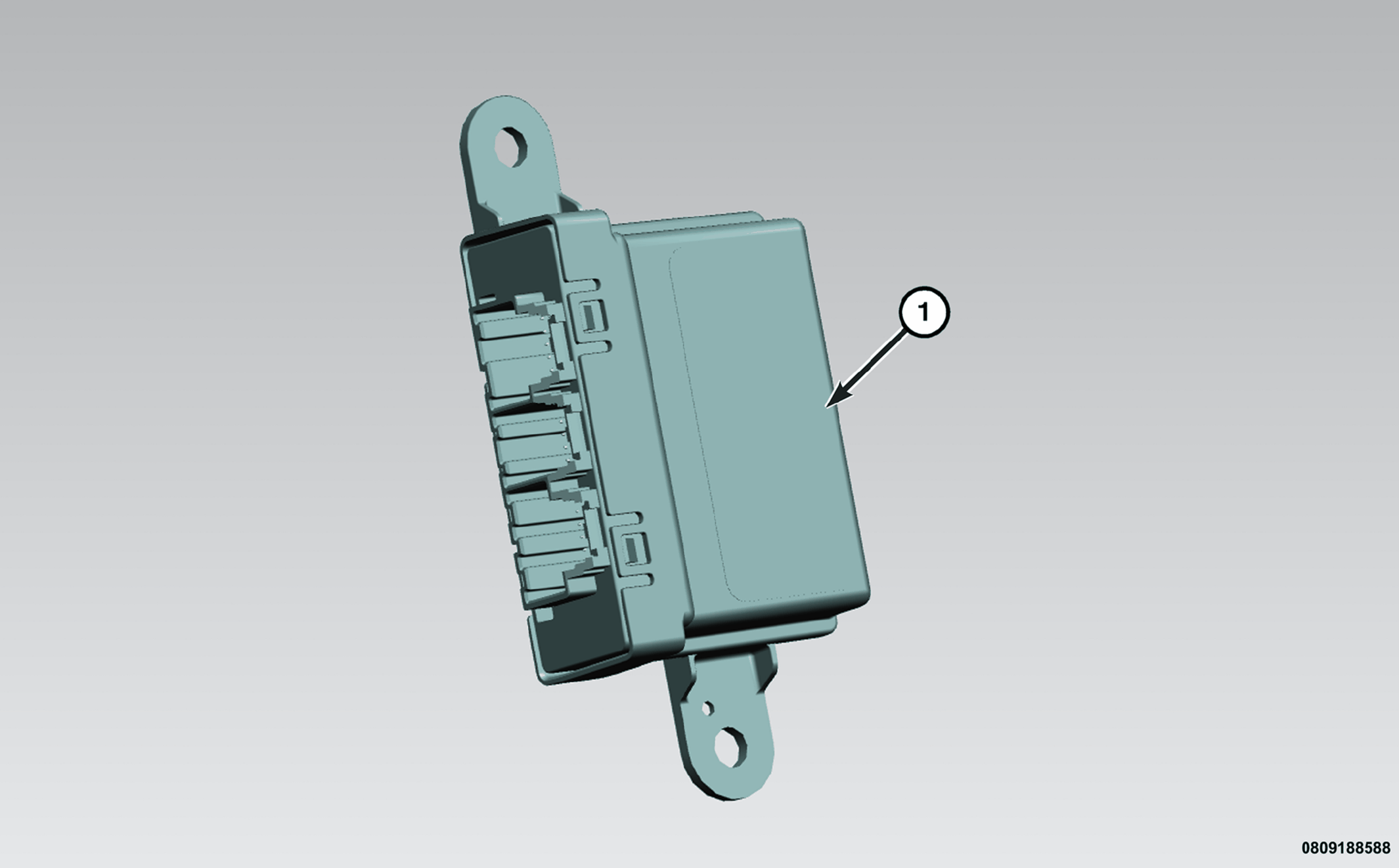

The rear Park Assist Module (PAM) (1) is secured with two retainers and two screws through two mounting tabs integral to the module housing within the right upper D-pillar at the rear of the vehicle.

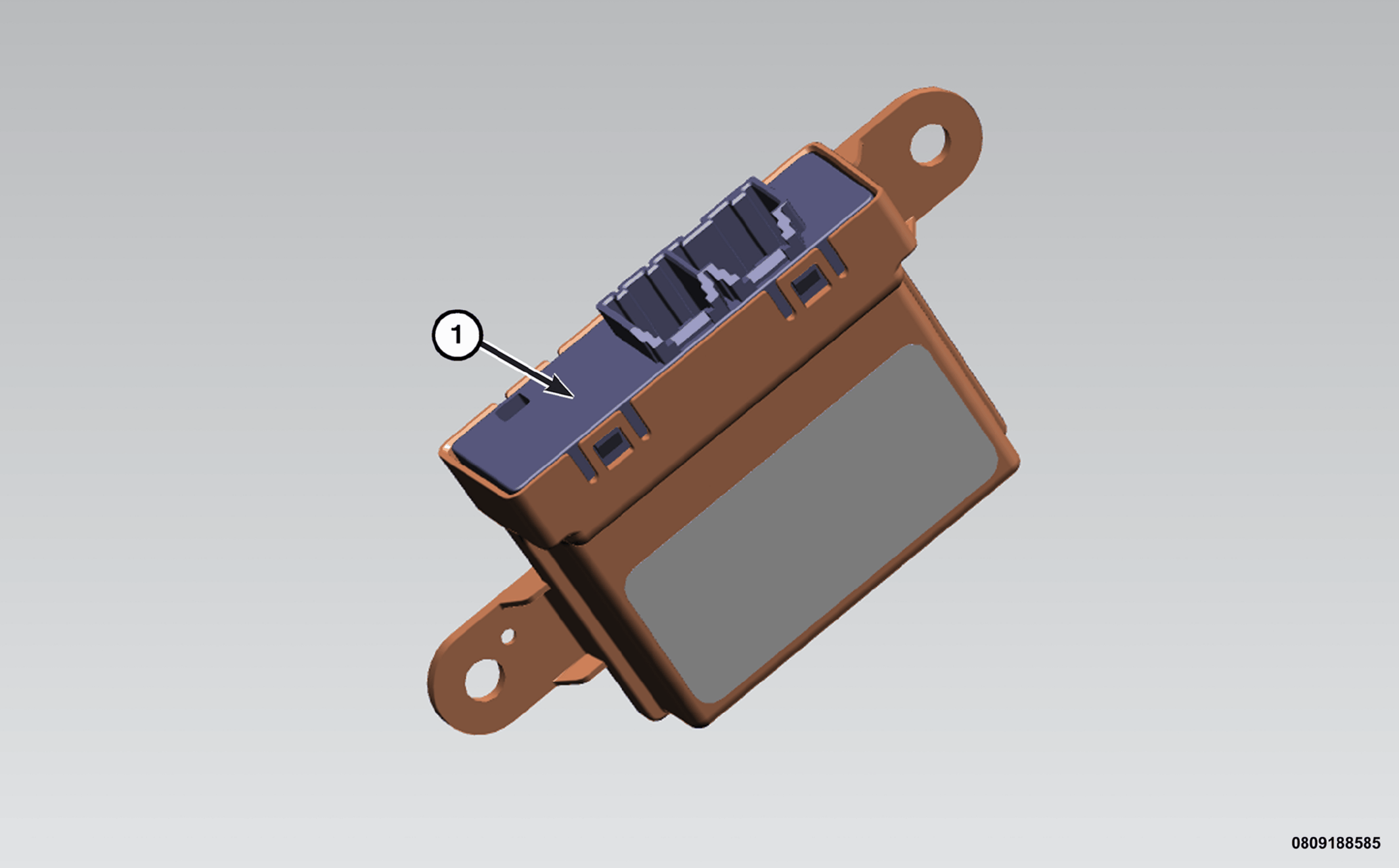

The front PAM (1) is located behind the glove box and is secured to the instrument panel. This PAM is equipped on vehicles with the Side Distance Warning feature.
