Module, Blind Spot (BSM): Installation

WARNING: This page is about a different car, the 2020 Dodge Challenger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Be certain that both the Left Blind Spot Sensor (LBSS) and the Right Blind Spot Sensor (RBSS) module part numbers are at the same revision level. The Blind Spot Monitor (BSM) system will not function or will not function properly if the revision levels of the LBSS and the RBSS part numbers are not synchronized.

Slide the appropriate sensor module into the sensor module mounting bracket until it is fully engaged and seated.

Courtesy of CHRYSLER GROUP, LLC

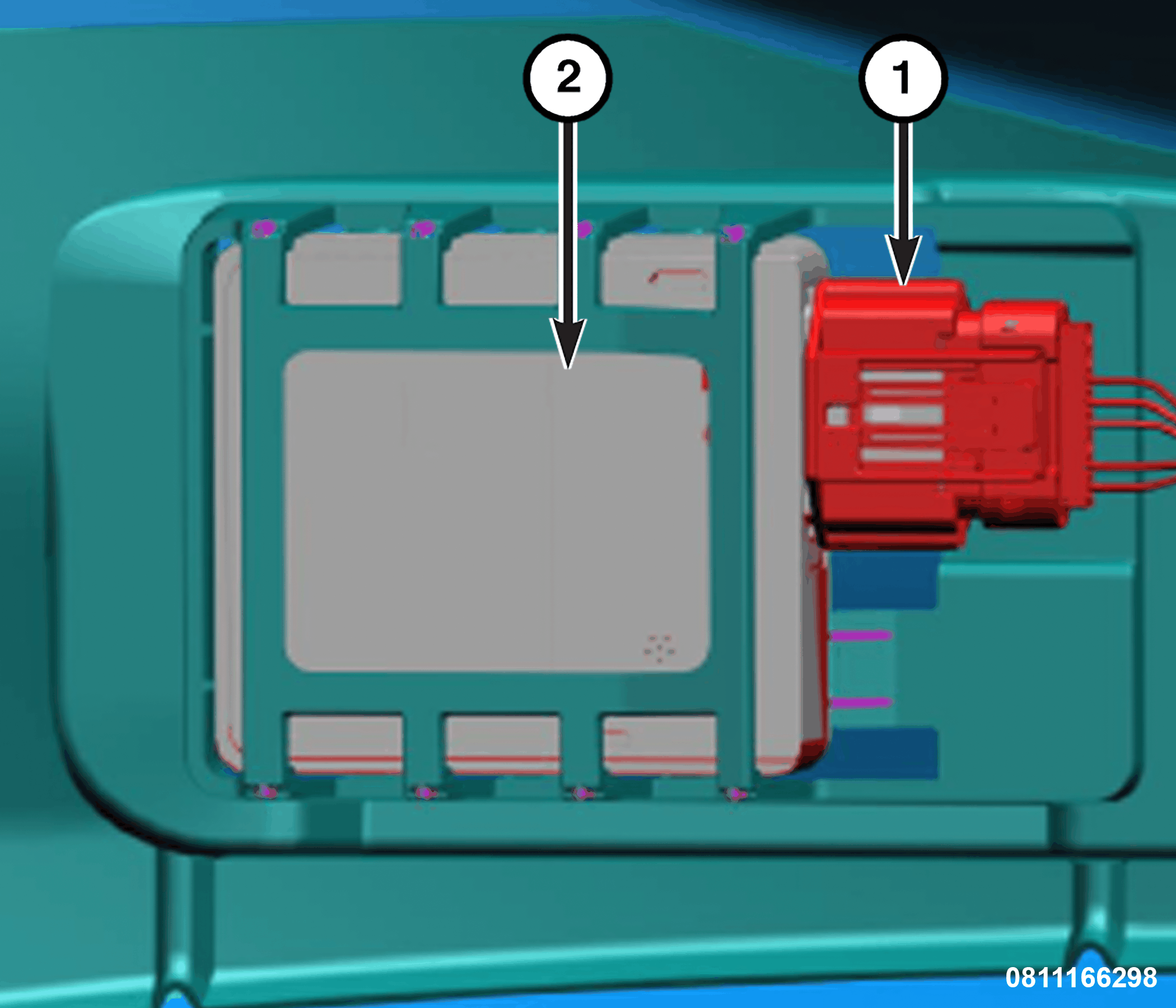

Connect the wire harness connector (1) to the appropriate sensor module (2).
Install the rear fascia. Refer to FASCIA, REAR, LOWER, INSTALLATION .
Connect the negative cable to the battery. If equipped with an Intelligent Battery Sensor (IBS), reconnect the IBS connector.
