Module, Blind Spot (BSM): Removal

WARNING: This page is about a different car, the 2020 Dodge Challenger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative cable from the battery. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector before disconnecting the negative cable from the battery.
  2. Remove the rear bumper fascia from the vehicle. Refer to FASCIA, REAR, LOWER, REMOVAL . The Left Blind Spot Sensor (LBSS) and the Right Blind Spot Sensor (RBSS) modules are now mounted to the rear fascia. Partially remove the fascia to disconnect the harness from the appropriate sensor module.
    GC0192426Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the wire harness connector (1) from the appropriate sensor module (2).

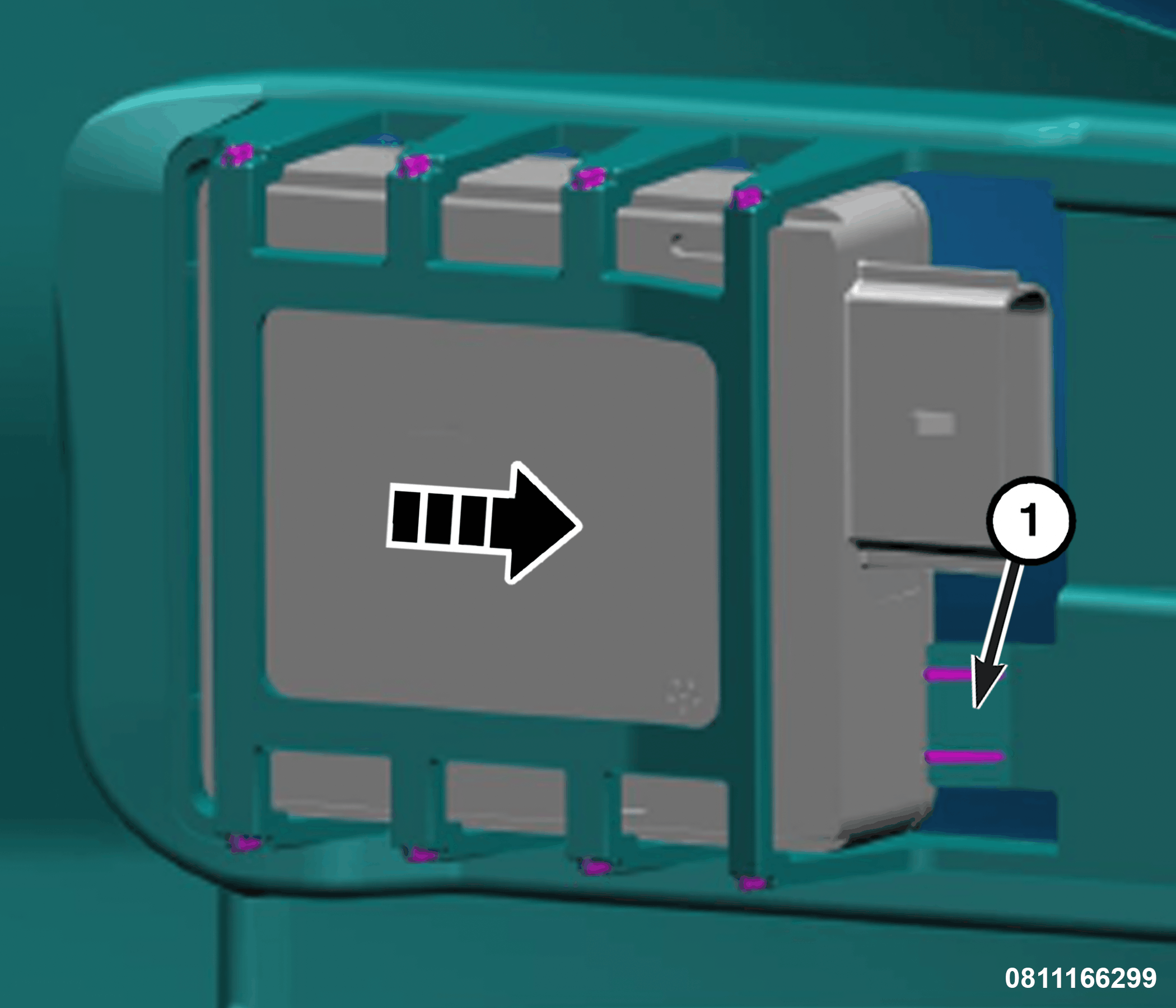

    GC0192452Courtesy of CHRYSLER GROUP, LLC
  4. Depress the latch (1) and slide the sensor module out of the bracket.
