Module, Integrated Center Stack (ICSM): Removal
WARNING: This page is about a different car, the 2020 Dodge Challenger. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

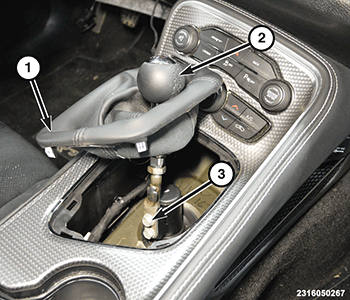

- For manual shifter using a trim stick or equivalent, carefully release the retaining clips and lift the shifter boot (1) up.
- Remove the fasteners (3), then remove the shifter lever (2).
- For automatic shifter, place the shifter in the Neutral position.

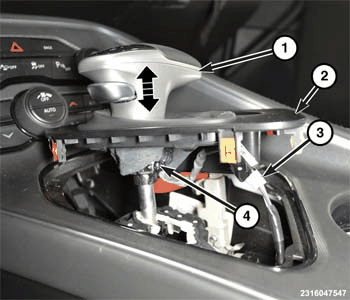

- Using a trim stick or equivalent, carefully release the retaining clips and lift the shifter bezel (2) up.
- Remove the fastener (4) then lift up on the shifter knob (1) and remove.

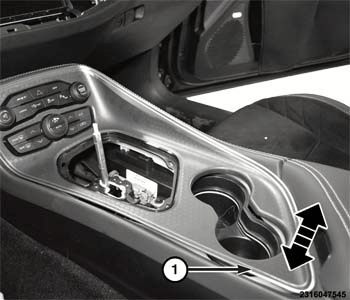

- Using a trim stick or equivalent, starting at the rear carefully release the retaining clips and lift the shifter bezel panel (1). Disconnect the wire harness connectors and remove.
- Remove the four screws (2) from the Integrated Center Stack (ICS) (1) to the shifter bezel panel.
