Module, Park Assist (PAM): Installation
WARNING: This page is about a different car, the 2020 Dodge Challenger. However, it is still accessible from the selected car via links, so may be relevant.

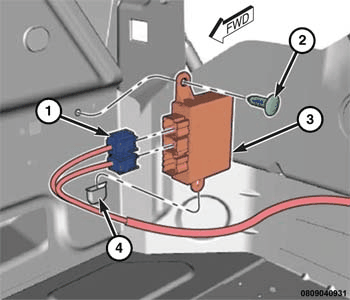

- Position the Park Assist Module (PAM) (3) to the right quarter inner panel above and behind the right rear wheel house. Be certain to engage the lower mounting tab into the stamped pocket (4) in the right quarter inner panel.
- Reinstall the push-pin type retainer (2) that secures the PAM to the right quarter inner panel.
- Reconnect the body wire harness connectors (1) to the PAM connector receptacles.
- Reinstall the trim onto the right quarter inner panel. Refer to CARPET, INSTALLATION .
- Reconnect the negative cable to the battery. If equipped with an Intelligent Battery Sensor (IBS), reconnect the IBS connector.
