Module, Power Sunroof (PSM): Installation
WARNING: This page is about a different car, the 2020 Dodge Challenger. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Do not attempt to move or reposition the sunroof glass panel or drive cables with the sunroof motor and module unit removed. Damage to the vehicle, to the sunroof or personal injuries may result.
WARNING:
The Sunroof Motor And Module Initialization procedure must be completed any time a sunroof motor and module unit is replaced with a new component. Failure to perform this procedure may result in damage to the vehicle, to the sunroof or in serious or fatal injuries.

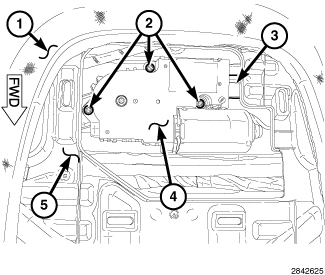

- Position the sunroof motor (4) close enough to connect the wire harness connector to the motor connector receptacle (3).
- Position the motor onto the sunroof frame.
- Install and tighten the three screws (2) that secure the motor to the sunroof frame.
- Install the rear of the headliner. Refer to HEADLINER, INSTALLATION .
- Connect the battery negative cable.
- Perform the Sunroof Initialization and Obstacle Detection Calibration procedure. Refer to MODULE, POWER SUNROOF (PSM), MODULE PROGRAMMING .
