Removal And Installation: Installation

GC0171782Courtesy of CHRYSLER GROUP, LLC
  1. Position the steering column upper cover (1) in place.

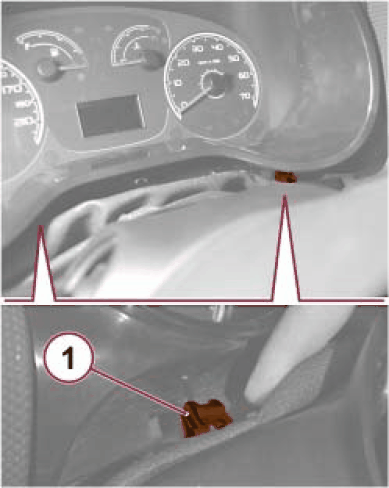

    GC0171281Courtesy of CHRYSLER GROUP, LLC
  2. Lock the retaining clips (1) for the dust cover for the steering column upper cover.
    GC0171604Courtesy of CHRYSLER GROUP, LLC
  3. Install the upper steering column cover screws.

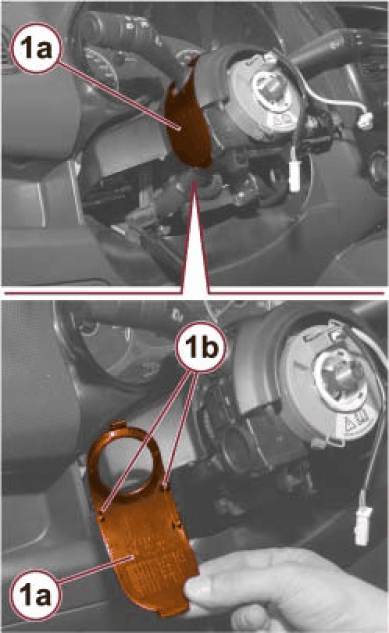

    GC0171387Courtesy of CHRYSLER GROUP, LLC
  4. Position the trim (1a) engaging the retainers (1b).

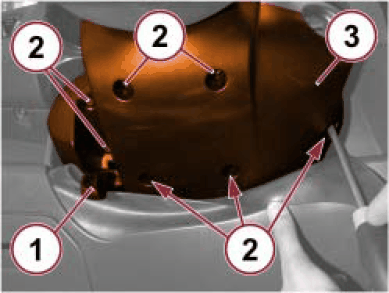

    GC0171654Courtesy of CHRYSLER GROUP, LLC
  5. Position the lower steering column cover (1), then install the lower steering column cover screws (2).
  6. Lock the steering wheel adjustment lever (1).
  7. Install the steering wheel. Refer to WHEEL, STEERING, REMOVAL AND INSTALLATION .
