Module, Drivetrain Control (DTCM): Removal

  1. Position the left front seat to its full forward position.
  2. Disconnect and isolate the negative battery cable. Refer to CABLES, BATTERY, REMOVAL .

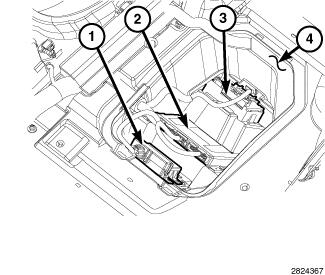

    GC0210004Courtesy of CHRYSLER GROUP, LLC
  3. Remove the cover panel from the electronic module tub (4) to access the DTCM (3).
  4. Disconnect the wire harness connector from the DTCM.
  5. Release the integral latches that secures the DTCM to the mounting bracket and slide the DTCM upward.
  6. Remove the DTCM from the vehicle.
