Module-Central Vision Processing C2 (Standard) Connector End View (D2999B)

Harness-Family: IP

Color: LIGHT GREEN

Gender: FEMALE

Part Number: 1/13086/83

Part Description: Not Available

Connector No: D2999B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

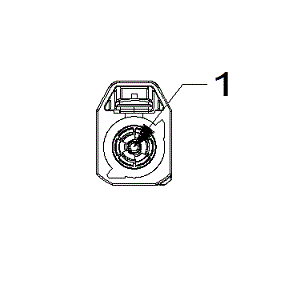

Fig 1: Module-Central Vision Processing C2 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Module-Central Vision Processing C2 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

J222

0.81

COAX CABLE A LVDS CAMERA FRONT SIG

SURROUND VIEW CAMERA

⁽¹⁾	Pins not listed are not used for this connector
