Module-Central Vision Processing C6 (Standard) Connector End View (D2999F)

Harness-Family: IP

Color: VIOLET

Gender: FEMALE

Part Number: 1/13080/99

Part Description: Not Available

Connector No: D2999F

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

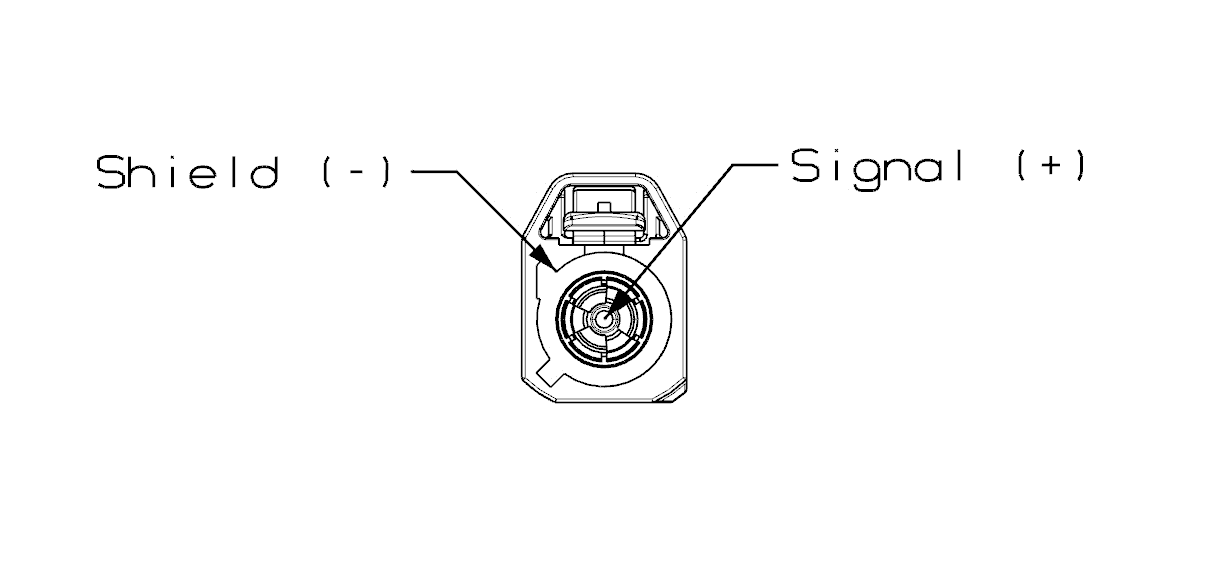

Fig 1: Module-Central Vision Processing C6 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Module-Central Vision Processing C6 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

J220

0.81

COAX CABLE A LVDS CAMERA REAR SIG

SURROUND VIEW CAMERA

⁽¹⁾	Pins not listed are not used for this connector
