Module-Rear View Mirror Display C1 (Standard) Connector End View (D6625A)

Harness-Family: Body_Right

Color: BLACK

Gender: FEMALE

Part Number: 1/13067/97

Part Description: Not Available

Connector No: D6625A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

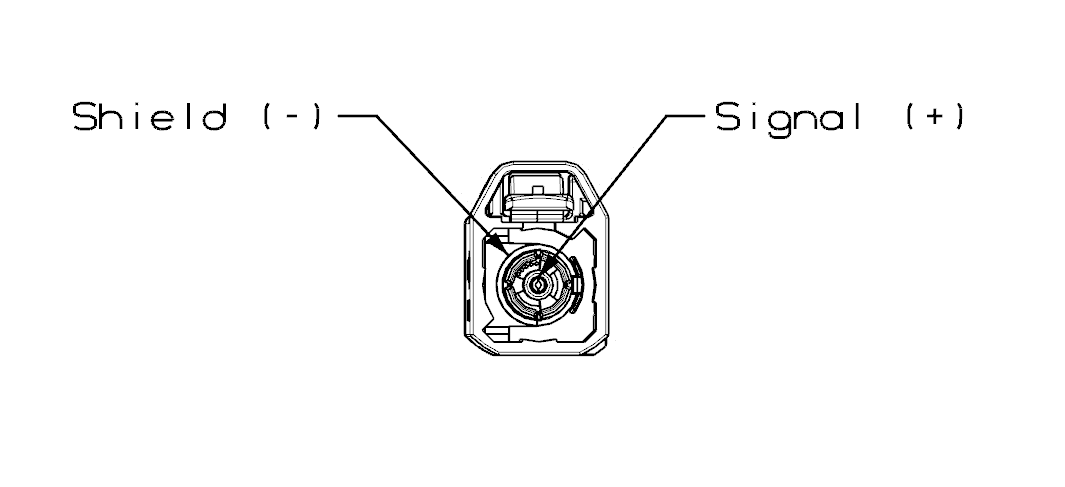

Fig 1: Module-Rear View Mirror Display C1 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Module-Rear View Mirror Display C1 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

J219

0.81

CAMERA COAX CABLE

DIGITAL REARVIEW MIRROR

⁽¹⁾	Pins not listed are not used for this connector
