Module-Steering Control (Standard) Connector End View (D3816A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 1/15072/07

Part Description: Not Available

Connector No: D3816A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

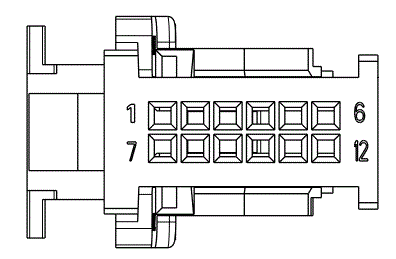

Fig 1: Module-Steering Control Connector End View (Standard)

Courtesy of CHRYSLER

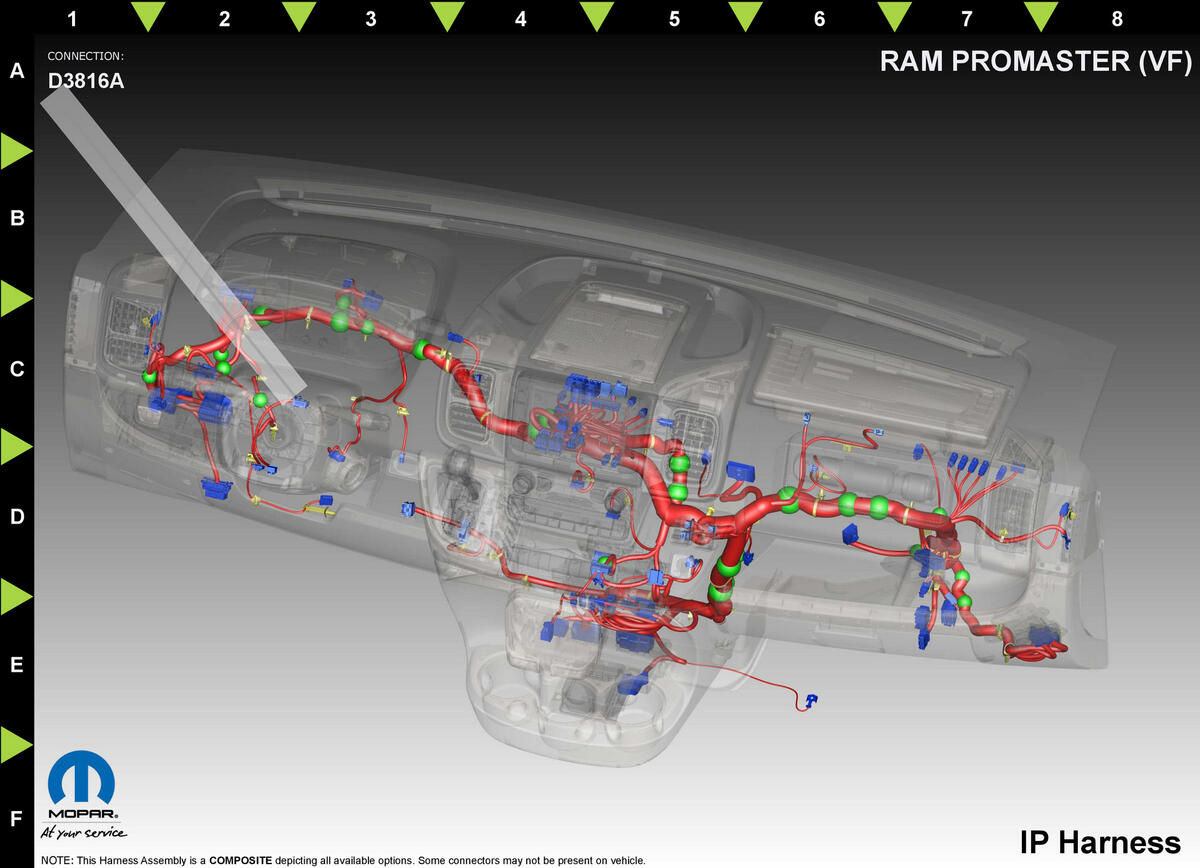

Fig 2: Module-Steering Control Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

L12

VT/RD

0.35

TURN SIGNAL INPUT MUX

N/A

L37

WH/GN

0.35

HIGH BEAM SWITCH SENSE

N/A

L107

YE/BK

0.35

MAIN LIGHTING SWITCH

N/A

W23

WH/DB

0.35

HEADLAMP WASHER RELAY OUTPUT

N/A

WH/BK

0.35

WIPER ON/OFF RELAY CONTROL

N/A

Z930

BK/VT

0.35

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
