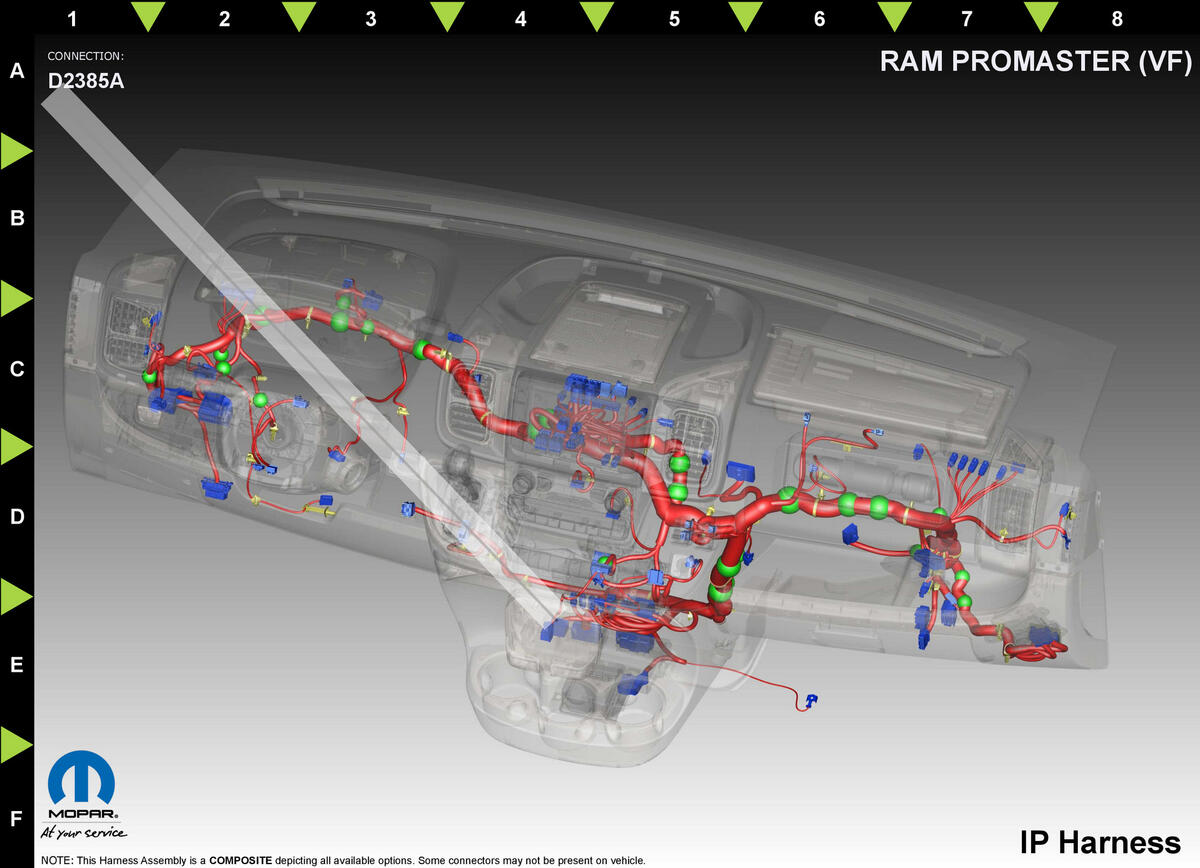

Module-Vehicle System Interface C1 (Standard) Connector End View (D2385A)
Harness-Family: IP
Color: GRAY
Gender: FEMALE
Part Number: 31372-1100
Part Description: Not Available
Connector No: D2385A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 5 | D28 | BN | 0.5 | CAN C (-) | RADIO WIRING PREP WITH VSIM | ||
| 5 | D46 | BN | 0.5 | CAN C (-) | VSIM | ||
| 6 | D27 | GN | 0.5 | CAN C (+) | RADIO WIRING PREP WITH VSIM | ||
| 6 | D45 | GN | 0.5 | CAN C (+) | VSIM | ||
| 7 | A807 | RD/GN | 2.5 | FUSED B(+) | VSIM | ||
| 10 | Z930 | BK | 2.5 | GROUND | VSIM | ||
|
|||||||
