Steering System: Column: Installation
 Courtesy of CHRYSLER GROUP, LLC
|

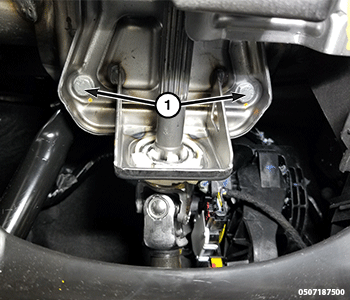

- Position the steering column to the instrument panel.
- Install the steering column bolts (1) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS
.
 Courtesy of CHRYSLER GROUP, LLC
|

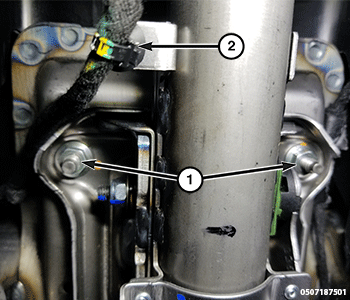

- Install the steering column nuts (1) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS
.
- Secure the wiring harness routing clip (2).
 Courtesy of CHRYSLER GROUP, LLC
|

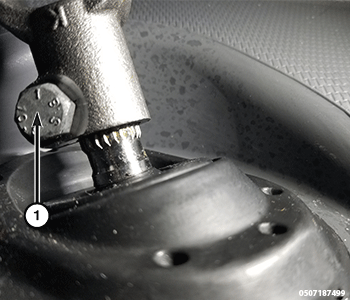

- Install the steering column shaft to the steering gear.
- Install the steering column pinch bolt (1) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS
.
- Install the clockspring. Refer to CLOCKSPRING, INSTALLATION
.
- Install the upper steering column shroud. Refer to SHROUD, STEERING COLUMN, UPPER, INSTALLATION .
- Install the lower steering column shroud. Refer to SHROUD, STEERING COLUMN, UPPER, INSTALLATION .
- Install the steering wheel. Refer to WHEEL, STEERING, INSTALLATION .
