Module, Vehicle System Interface (VSIM): Removal

WARNING: This page is about a different car, the 2023 RAM 1500 Classic. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
    GC0162899Courtesy of CHRYSLER GROUP, LLC

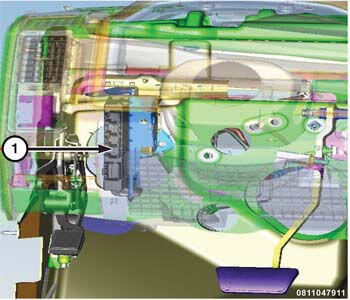

  2. Remove the steering column opening cover to access the VSIM. Refer to COVER, STEERING COLUMN OPENING, REMOVAL .
    GC0162901Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the wire harness connectors from the VSIM.
  4. Press the release tab on the VSIM bracket and remove the module.
