Central Vision Processing Module (CVPM)

REMOVAL

1. Remove the lower glove box assembly. Refer to GLOVE BOX, INSTRUMENT PANEL, REMOVAL AND INSTALLATION .
2. Disconnect the wire harness connectors from the CVPM.

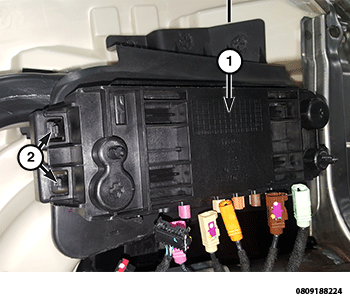

   Courtesy of CHRYSLER GROUP, LLC

   1 - CVPM Assembly

   2 - Tabs

3. Disengage the tabs and remove the CVPM assembly from the vehicle.
4. Remove the fasteners securing the CVPM to the bracket.

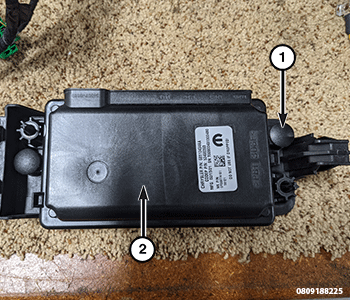

   Courtesy of CHRYSLER GROUP, LLC

   1 - Fasteners

   2 - CVPM

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• Using the diagnostic scan tool, perform the surround view camera programming. Refer to PROGRAMMING AND CALIBRATION .
