Speed Control Switch

DESCRIPTION

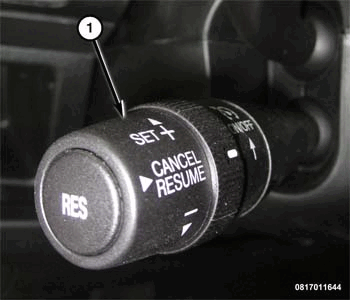

GC0224300Courtesy of CHRYSLER GROUP, LLC
1 - Speed Control Switch

The speed control switch is located on the left stalk on the steering column. This switch uses four switch controls and is used on all vehicles equipped with the speed control (also known as cruise control) system. The only visible components of the switch are the push and rotary switches. The remainder of the switch including its mounting provisions and its electrical connection are concealed within the steering wheel.

Each switch selection has an International Control and Display Symbol graphics or text applied to it, which clearly identify the function of the switches.

The speed control switch cannot be adjusted or repaired. If any function of the switch is inoperative or damaged, the stalk unit must be replaced.

OPERATION

The speed control switch pod is a resistor multiplexed unit that provides hard-wired inputs to the Body Control Module (BCM). The BCM relays the speed control switch inputs to the Powertrain Control Module (PCM) over the Controller Area Network (CAN) bus.

The speed control switch contains four control functions, which are:

The BCM continually monitors all of the hard-wired speed control switch circuits and will set a Diagnostic Trouble Code (DTC) for any problem it detects in the speed control switch circuits.

The analog resistor multiplexed circuits of the speed control switch stalk, as well as the hard-wired circuits between the switch stalk and the BCM, may be diagnosed using conventional diagnostic tools and procedures. Refer to the appropriate wiring information.

However, conventional diagnostic methods will not prove conclusive in the diagnosis of the BCM, the PCM or the electronic controls and communication between modules and other devices that provide some features of the speed control system. The most reliable, efficient, and accurate means to diagnose the speed control switch pod, the BCM, the PCM or the electronic controls and communication related to speed control system operation requires the use of a diagnostic scan tool. Refer to the appropriate diagnostic information.
