Park Assist Module (PAM) 2

REMOVAL

1. Remove the Body Control Module (BCM). Refer to MODULE, BODY CONTROL (BCM), REMOVAL AND INSTALLATION .
2. Remove the fasteners securing the PAM to the instrument panel.

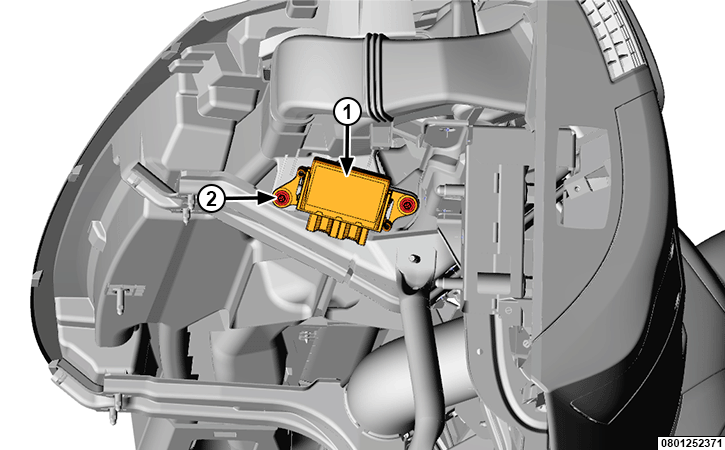

   Courtesy of CHRYSLER GROUP, LLC

   1 - PAM

   2 - Fasteners

3. Disconnect the wire harness connectors from the PAM then remove the module from the vehicle.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• Tighten the fasteners securely.
• Using the diagnostic scan tool, perform the surround view camera programming. Refer to PROGRAMMING AND CALIBRATION .
