Trailer Tow Module

REMOVAL

1. Remove D-pillar trim screws and remove the D-pillar trim.

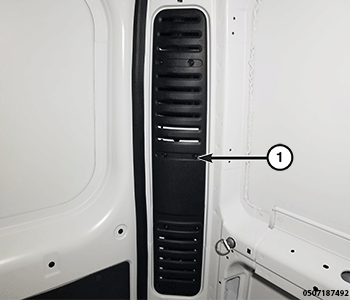

   Courtesy of CHRYSLER GROUP, LLC

   1 - D-Pillar Trim Screws

2. Release the Trailer Tow Module (TTM) bracket tab and disengage the TTM bracket from the D-pillar.

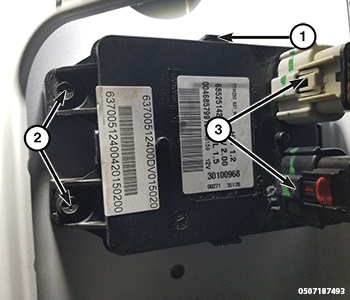

   Courtesy of CHRYSLER GROUP, LLC

   1 - TTM Bracket Tab

   2 - TTM Bolts

   3 - Wire Harness Connectors

3. Disconnect the TTM wire harness connectors.
4. Remove the Trailer Tow Module (TTM) bolts and disengage the TTM from the TTM bracket.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• Position the TTM to the TTM bracket.
• Install the Trailer Tow Module (TTM) bolts and tighten securely.
• Position the TTM bracket to the D-pillar and securely engage the TTM bracket tab to the D-pillar.
• Position the D-pillar trim to the D-pillar.
• Install the D-pillar trim screws and tighten securely.
