Vehicle System Interface Module (VSIM)

REMOVAL

1. Disconnect and isolate the negative cable from the battery.
2. Remove the instrument panel cup holder. Refer to CUPHOLDER, INSTRUMENT PANEL, REMOVAL AND INSTALLATION .
3. Remove the fasteners and remove the cup holder trim support bracket.

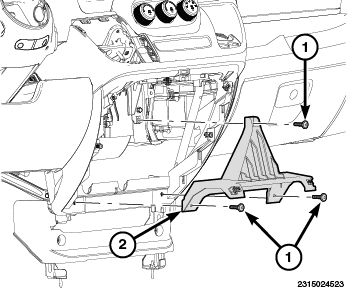

   Courtesy of CHRYSLER GROUP, LLC

   1 - Fasteners

   2 - Cup Holder Trim Support Bracket

4. Disconnect the wire harness connectors from the VSIM.
5. Disengage the tabs of the VSIM and remove from the cup holder trim support bracket.

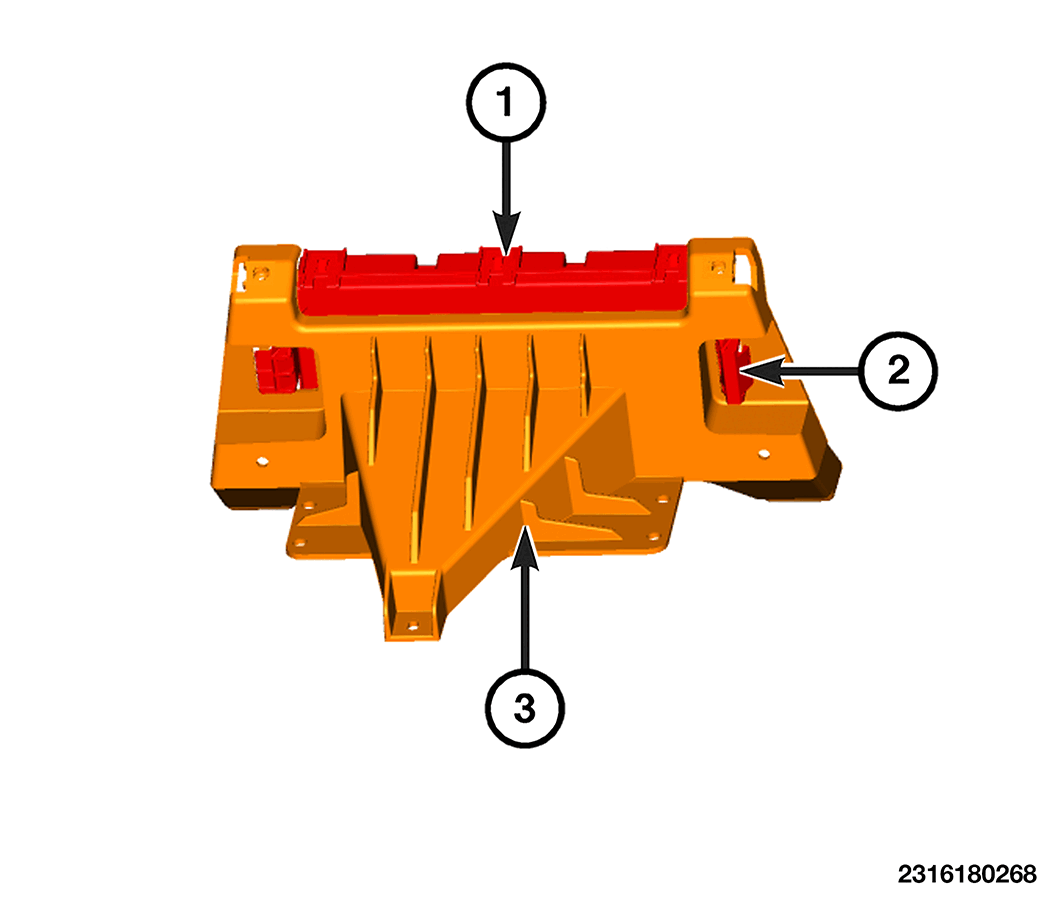

   Courtesy of CHRYSLER GROUP, LLC

   1 - VSIM

   2 - Tabs

   3 - Cup Holder Trim Support Bracket

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• Tighten the fasteners securely.
