Brake System Control Module (BSCM): Notes

REMOVAL

1. Disconnect the negative battery cable.
2. Move the left headlamp slightly forward. Refer to UNIT, FRONT LAMP, REMOVAL AND INSTALLATION .
3. Disconnect the Brake System Control Module (BSCM) wire harness connector.

   Courtesy of CHRYSLER GROUP, LLC

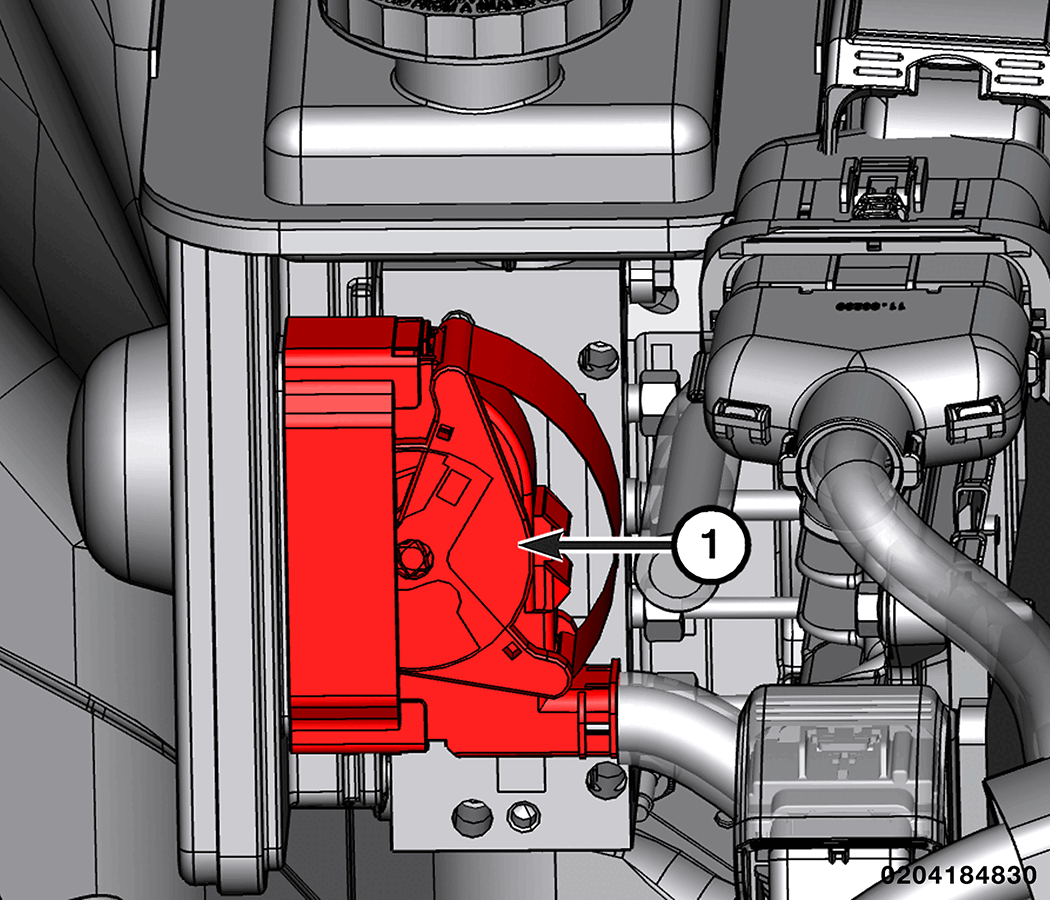

   1 - Wire Harness Connector

4. Remove and DISCARD  the Brake System Control Module (BSCM) bolts.

   Courtesy of CHRYSLER GROUP, LLC

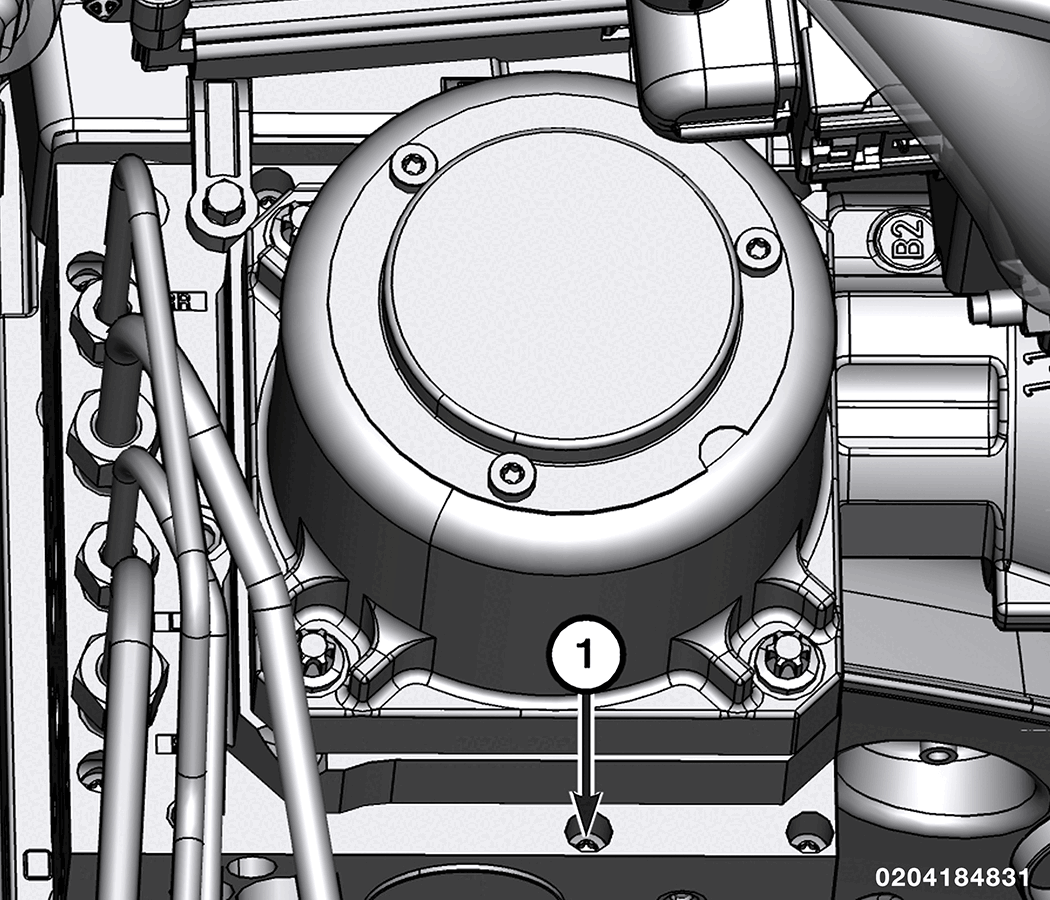

   1 - Brake System Control Module (BSCM) Bolts

5. Remove the BSCM.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• Install NEW  Brake System Control Module (BSCM) bolts and tighten in sequence as shown.
• Connect the scan tool and initialize the BSCM by performing the BSCM Verification Test. Refer to ABS VERIFICATION TEST, 3.6L or BSCM VERIFICATION TEST (BEV) .
