Power Window Switch

REMOVAL

1. Disconnect the negative battery cable from the battery.
2. Using a trim stick, work on the end of the door switch bezel and pull up.

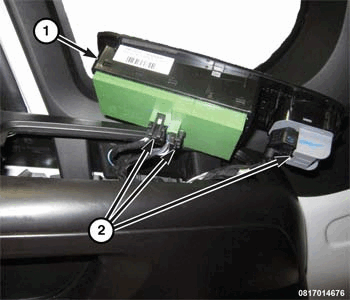

   Courtesy of CHRYSLER GROUP, LLC

   1 - Door Switch Bezel

   2 - Connectors

3. Disconnect the three connectors from the switch bank.
4. Remove the switch bank from the vehicle.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• Once all the connectors are seated, insert the top end of the switch bank into the proper position and then push down on the back of the switch pod to complete the installation.
