Description And Operation: Notes

Courtesy of CHRYSLER GROUP, LLC

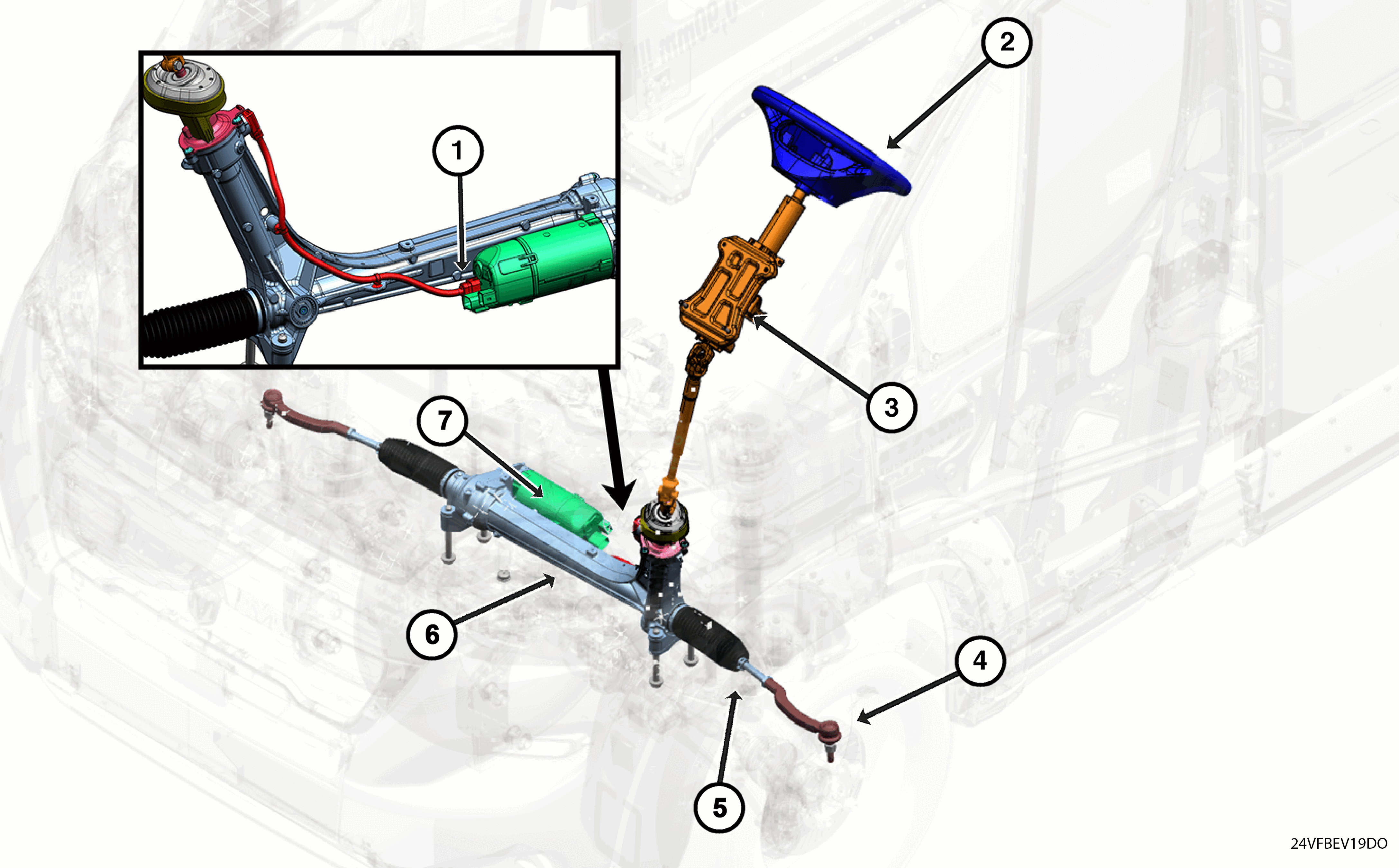

1 - Integral Wiring Connector (Do Not Disconnect)

5 - Inner Tie Rod

2 - Steering Wheel

6 - Steering Gear

3 - Steering Column

7 - Steering Electric Motor and Module

4 - Outer Tie Rod

The Electric Power Steering (EPS) system consists of:

Steering column
Electric Power Steering Gear
EPS module (part of steering gear)
Inner and Outer tie rod ends

The steering gear is mounted on the front suspension cradle. The only serviceable parts of the steering gear are the inner tie rods, outer tie rods, and the inner tie rod bellows.

A Steering Angle Sensor and Torque Steer Sensor are internal to the Electric Steering Gear and cannot be service separately.

NOTE: The EPS system is a dry gear system. The EPS system does not contain any hydraulic components such as:

A belt-driven hydraulic pump
Any high-pressure hydraulic hoses
Power steering fluid

The EPS system will not experience a hydraulic leak. If fluid is detected at the front of the vehicle, on or near the steering gear, investigate other systems.

NOTE: If a NEW steering gear is installed, programming is required. Refer to ELECTRONIC POWER STEERING (EPS) MODULE, DIAGNOSTIC CODE INDEX .
