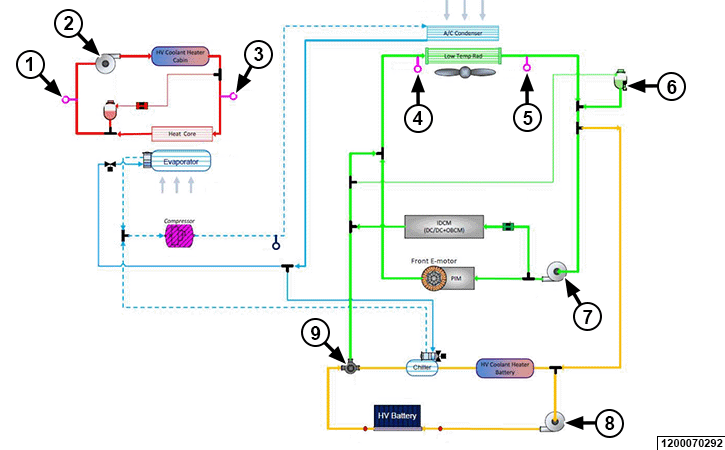

VF-BEV Cooling System Architecture
WARNING: This page is about a different car, the 2024 RAM ProMaster EV. However, it is still accessible from the selected car via links, so may be relevant.
| 1 - Coolant Temperature Sensor - HV Coolant Heater Input |
| 6 - Coolant Level Sensor - Low Temp |
| 2 - Electric Coolant Pump |
| 7 - Electric Coolant Pump |
| 3 - Coolant Temperature Sensor - HV Coolant Heater Output |
| 8 - Electric Coolant Pump |
| 4 - Coolant Temperature Sensor - Radiator Output |
| 9 - 3 Way Valve |
| 5 - Coolant Temperature Sensor - Radiator Input |
There are three different types cooling systems on this vehicle. A High Temperature Cooling Loop, a Low Temperature Cooling Loop, HV Battery Cooling Loop, with an A/C Chiller. Cooling pumps are used to pump coolant through the cooling loop and various temp sensors are used to monitor the cooling system for concerns.
