Module, Adaptive Cruise Control (Acc): Removal

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL .
  3. Disconnect the wire harness connector from the Adaptive Cruise Control (ACC) radar.
  4. Remove the fasteners securing the ACC radar to the front fascia, then remove the ACC radar.

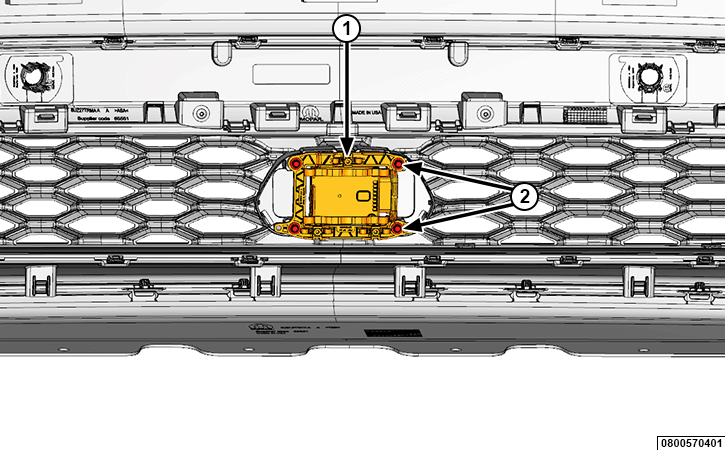

    GC0220717Courtesy of CHRYSLER GROUP, LLC
    1 - ACC Radar
    2 - Fasteners
